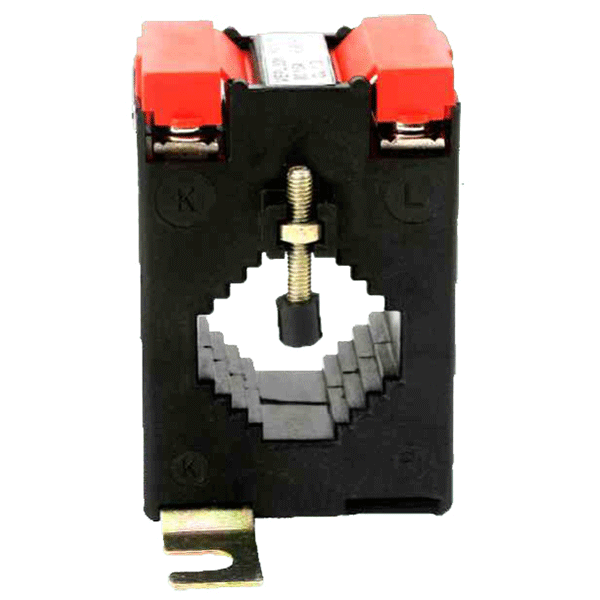

Veritek VIPS 4401 200 5 1 2.5 is a current transformer used in an electrical connection to measure Alternating Current (AC). The current generated in its secondary circuit is proportional to that of the current in the primary circuit. Transformer turns ratio meters indicate a 200/5 ratio on the transformer. The terminals of the Veritek Current Transformer are finger touch proof which ensures user safety. Simplified bus bar mounting makes this device suitable for various testing & measuring operations. It is exceptionally suitable for electrical power testing because of its cost-effectiveness and compact design, allowing consistent, stable operation in an inexpensive budget. Current transformers find extensive application throughout the industry ranging from distribution systems to generator sets.
Product Attributes:
Rated Primary Current: 150A to 800A
Rated Secondary Output: 5A/1A
Ratio: 200/5
Material: ABS plastic molding
Apertures compatible with a wide range of bus bar
Unbreakable body (ultrasonically welded)
Benefits:
Simplified bus bar mounting
Cost-effective
Compact design
Finger touch proof terminals for user safety
