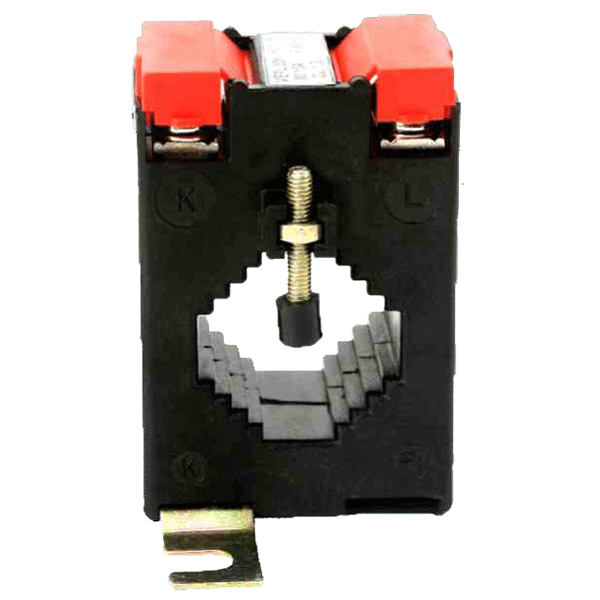

Veritek VIPS 1001 3000 5 0.5 30 is a type of current transformer used to measure Alternating Current (AC). It generates current in its secondary circuit that is proportional to the current in the primary circuit. Transformer turns ratio meters indicate 3000/5 ratio for the current transformer. Veritek Current Transformer is finger touch proof due to safety purposes. Easy bus bar mounting makes this device suitable for all kinds of testing & measuring processes. It is exceptionally suitable for electrical power testing as it is highly economical and compact in size, allowing complication-free operation even in a low budget. Current transformers find extensive application throughout the industry ranging from control devices to overload protection.
Product Attributes:
Rated Primary Current: 400A to 2000A
Rated Secondary Output: 5A/1A
Ratio: 3000/5
ABS plastic molding
Apertures compatible with a wide range of bus bar
Unbreakable as ultrasonically welded
Benefits:
Easy bus bar mounting
Highly cost effective
Compact design
Finger touch proof terminals for safety measure
