Buy V-Guard VSWS-FH45US - 1.5 HP Sewage Submersible Pump Online

V-Guard VSWS-FH45US - 1.5 HP Sewage Submersible Pump


Available on Request
Quantity
Minimum Order Quantity: 1 unit(s) Packing Qty: 1 Piece
OR
Reach Us At +91-9243011081

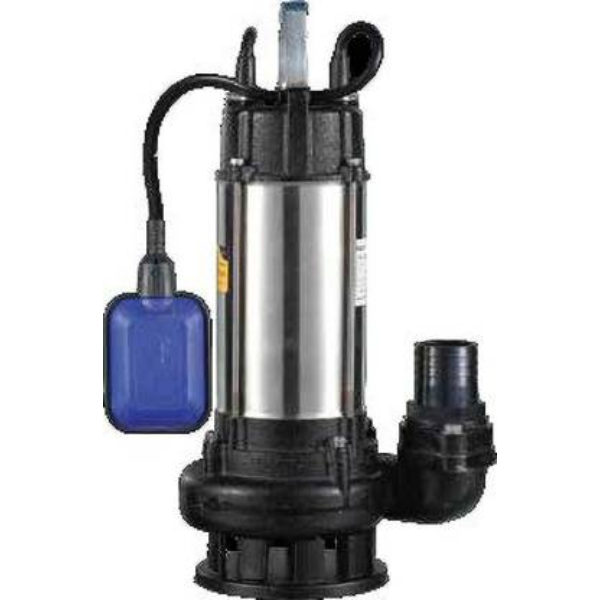

V-Guard VSWS-FH45US - 1.5 HP Sewage Submersible Pump

Price

Available on Request
Delivery * Free delivery above Rs. 1000
* COD payment upto Rs. 5000
* 7 days easy replacement policy
* Bulk orders are shipped through surface and therefore might take more than 10 days for delivery

Check

Please enter pincode.
Services

Dispatch in 1-2 Business Days

Standard SD Replacement Policy

100% Authentic and Genuine Products. Secure and Safe Payments.

NA

NA

Description
  • Dry type submersible induction motor.
  • Class B Insulation.
  • Shaft and fasteners are in stainless steel to enhance life.
  • Impeller and casing are coated with chemical resistance coating to improve life and performance.
  • Solid handling size up to 20 mm.
  • Cable connectors filled with resin to prevents water leakage into the motor through the cable wire.
  • Dual mechanical seal prevents water entry into the dry motor portion at two interfaces, One at pump portion to oil chamber and another at oil chamber to dry motor portion.
  • Compact In construction.
  • High Efficiency.
  • Long Durability.
  • Standard Operating Conditions
  • The pumping medium temperature must not exceed 40 degree Celsius.
  • pH range of medium between 6.5-8.5.
  • Ensure proper earthing to avoid electrical risks.
  • The depth of water must be less than 5 meters, more than 0.5 meters.
  • The pump must not be operated in dry condition.
  • The allowable particle size is up to 20 mm.
Product Specifications

GENERAL

Brand:
V-Guard
Country of Origin:
India
Customer Care Number:
1800-103-1300
Discharge:
26000 - 6000 LPH
Frequency:
50 Hz
Head:
3-12 m
Insulation Class:
B Class
Model:
VSWS-FH45US
Pipe Size:
50 mm
Power:
1.5 HP (1.1 kW)
Rotation:
Counter Clockwise, When viewed from pump side
Speed:
2880 RPM
Type of Duty:
S1 (Continuous)
Voltage:
180 -240 V
Warranty:
1 Year
