Buy V Guard VOTC 75140 - 7.5 HP Openwell Submersible Pump Online

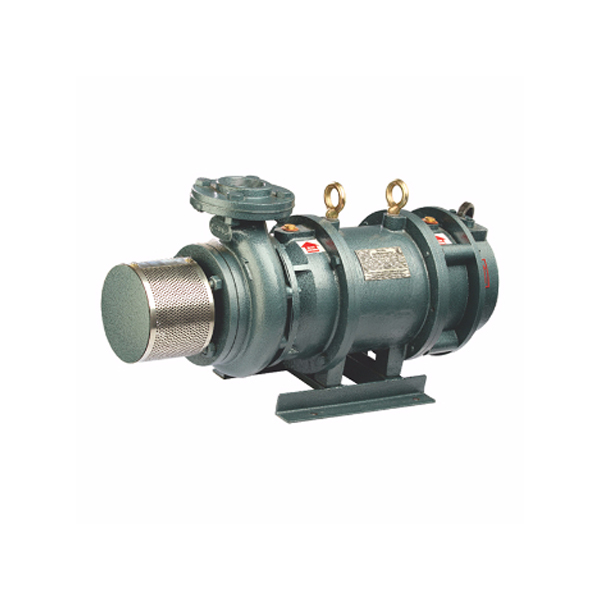

V Guard VOTC 75140 - 7.5 HP Openwell Submersible Pump


Available on Request
Quantity
Minimum Order Quantity: 1 unit(s) Packing Qty: 1 Piece
OR
Reach Us At +91-9243011081

V Guard VOTC 75140 - 7.5 HP Openwell Submersible Pump

Price

Available on Request
Delivery * Free delivery above Rs. 1000
* COD payment upto Rs. 5000
* 7 days easy replacement policy
* Bulk orders are shipped through surface and therefore might take more than 10 days for delivery

Check

Please enter pincode.
Services

Dispatch in 2-3 Business Days

Standard SD Replacement Policy

100% Authentic and Genuine Products. Secure and Safe Payments.

NA

NA

Description

Suitable for agriculture, drinking water supply, fountains, buildings, farmhouses, V Guard VOTC 75140 - 7.5 HP Openwell Submersible Pump enables the users to get a high water discharge rate and lower power bills. Well-designed for the huge voltage fluctuations, this single phase horizontal open-well Submersible pump set is equipped with a powerful motor, water-lubricated thrust, pressure diaphragm, bush bearings, dynamically balanced centrifugal Impeller. The machine is built with Cast iron/ Stainless steel. Manufactured as per the international standards, the device comes with balanced rotating components to ensure long bearing life and vibration free smooth operation. The machine comes with Class B Insulation. The Motor Shaft has been made of ANSI 410 Stainless Steel material.

Features:

-Low power consumption

-Properly placed thrust bearing offers many years of trouble-free operation

-Abrasion-corrosion free wearing rings for optimum the pressure leakage of the liquid.

-Can be easily repaired

Application:

The machine is suitable to extract water from open wells where there is wide fluctuation in water levels. It can be used in fountains, canals/rivers and high-rise buildings.

Product Specifications

GENERAL

Brand:
V-Guard
Country of Origin:
India
Head vs Discharge at 7.5 HP:
27 M: 830 LPH, 30 M: 750 LPH, 35 M: 640 LPH, 40 M: 530 LPH, 42 M: 480 LPH
Model:
VOTC 75140
Phase:
3 Phase
Pipe Size:
65x50 mm
Power:
7.5 HP, 5.5 Kw
Rated Current:
14.5 A
Rated Voltage:
415 V
Series:
VOTC Series
