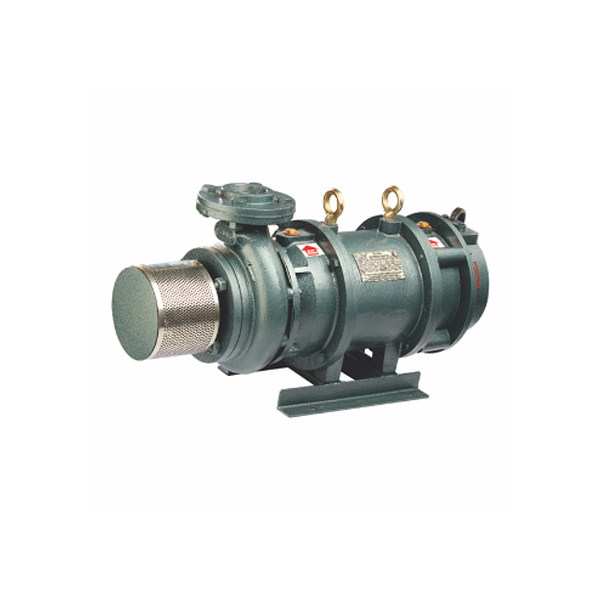

V Guard VOTC 75100 II - 7.5 HP VOTC Series 3 Phase Openwell Submersible Pump


Available on Request
Quantity
Minimum Order Quantity: 1 unit(s) Packing Qty: 1 Piece
OR
Reach Us At +91-9243011081

V Guard VOTC 75100 II - 7.5 HP VOTC Series 3 Phase Openwell Submersible Pump

Price

Available on Request
Delivery * Free delivery above Rs. 1000
* COD payment upto Rs. 5000
* 7 days easy replacement policy
* Bulk orders are shipped through surface and therefore might take more than 10 days for delivery

Check

Please enter pincode.
Services

Dispatch in 2-3 Business Days

Standard SD Replacement Policy

100% Authentic and Genuine Products. Secure and Safe Payments.

NA

NA

Description

Features:

  • Special LTB bushes inside the motor for higher wear resistance and longer life
  • Copper winding wire with high quality triple layer poly wrapping
  • Superior quality dual seal to prevent sand entry
  • Available in SS, MS and Cast Iron body
  • Maximum total head: 45 meters (150 feet)
  • Rewindable squirrel cage water cooled electric motor as prime mover
  • High-Quality electrical grade stamping used as motor core
  • Specially designed Pressure diaphragm to compensate thermal expansion
  • Dynamically balanced cast iron radial flow impeller
Product Specifications

GENERAL

Brand:
V-Guard
Country of Origin:
India
Head vs Discharge at 7.5 HP:
18 M: 1250 LPH, 21 M: 1150 LPH, 24 M: 1000 LPH, 27 M: 900 LPH, 30 M: 750 LPH
Model:
VOTC 75100 II
Phase:
3 Phase
Pipe Size:
75x65 mm
Power:
7.5 HP, 5.5 Kw
Rated Current:
14.5 A
Rated Voltage:
415 V
Series:
VOTC Series
