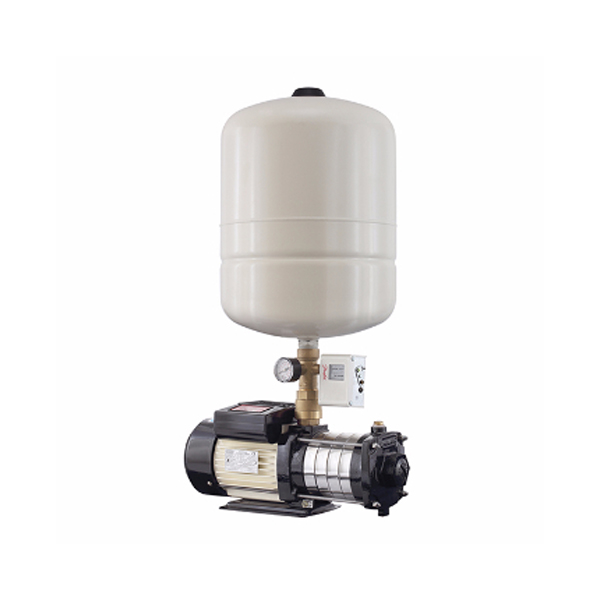

V Guard VB24 F4A - 1 HP VB24 Series Single Phase Pressure Booster Pump


Available on Request
Quantity
Minimum Order Quantity: 1 unit(s) Packing Qty: 1 Piece
OR
Reach Us At +91-9243011081

V Guard VB24 F4A - 1 HP VB24 Series Single Phase Pressure Booster Pump

Price

Available on Request
Delivery * Free delivery above Rs. 1000
* COD payment upto Rs. 5000
* 7 days easy replacement policy
* Bulk orders are shipped through surface and therefore might take more than 10 days for delivery

Check

Please enter pincode.
Services

Dispatch in 2-3 Business Days

Standard SD Replacement Policy

100% Authentic and Genuine Products. Secure and Safe Payments.

NA

NA

Description

Features:

  • Body: Aluminium Motor Body
  • Insulation: Class 'B'
  • Bearing: Double sealed ball bearing with life lubrication.
  • Motor Shaft: High quality alloy steel.
  • Impeller and Diffuser Material: SS304
  • Motor: The pumps are coupled to high efficient V-Guard induction motors. The motors are Totally Enclosed Fan Cooled (TEFC), Capacitor Start and Run Type. Also equipped with Thermal Overload Protector (TOP) to avoid coil burn out. Using 99.99% pure super enameled copper wire for motor winding.
  • Direction of rotation: Clockwise while viewed from motor side.
Product Specifications

GENERAL

Brand:
V-Guard
Capacitor:
20 mfd
Country of Origin:
India
Duty Type:
Continious S1
Head vs Discharge at 1 HP:
12 M: 4600 LPH, 15 M: 4200 LPH, 18 M: 3900 LPH, 21 M: 3600 LPH, 24 M: 3200 LPH, 27 M: 2900 LPH, 30 M: 2400 LPH, 33 M: 2000 LPH, 36 M: 1500 LPH, 39 M: 1000 LPH
Model:
VB24 F4A
Phase:
Single Phase
Pipe Size:
25x25 mm
Power:
1 HP, 0.75 Kw
Seal Size:
16 mm
Series:
VB24 Series
Speed:
2800 RPM
Voltage range:
180- 240 V
