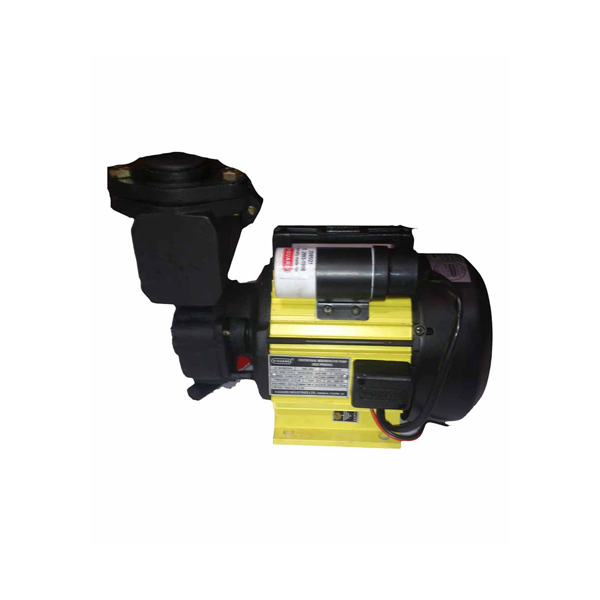

V Guard Neon F150 - 1 HP Neon Series Single Phase Self Prime Monoblock Pump


Available on Request
Quantity
Minimum Order Quantity: 1 unit(s) Packing Qty: 1 Piece
OR
Reach Us At +91-9243011081

V Guard Neon F150 - 1 HP Neon Series Single Phase Self Prime Monoblock Pump

Price

Available on Request
Delivery * Free delivery above Rs. 1000
* COD payment upto Rs. 5000
* 7 days easy replacement policy
* Bulk orders are shipped through surface and therefore might take more than 10 days for delivery

Check

Please enter pincode.
Services

Dispatch in 1-2 Business Days

Standard SD Replacement Policy

100% Authentic and Genuine Products. Secure and Safe Payments.

NA

NA

Description

Features:

  • Body: Aluminum extruded motor body
  • Motor Shaft: High Quality alloy steel
  • Insulation: Class 'B'
  • Mechanical seal: High quality mechanical seal with Graphite face
  • Super Suction and Wonder Suction pumps have faster self-priming characteristics compared to other models. These pump sets are easy for handling due to light weight
  • Impeller: Forged Brass impeller, ensuring longer life
  • Motor: The pumps are coupled to high efficient V-Guard induction motors. The motors are Totally Enclosed Fan Cooled (TEFC), Capacitor Start and run type. Also, the motors are equipped with Thermal Overload Protector (TOP) to avoid coil burn out. Using 99
  • Bearings: Double sealed ball bearings with life lubrication
  • Direction of Rotation: clockwise, when viewed from motor side
Product Specifications

GENERAL

Brand:
V-Guard
Capacitor:
20 mfd
Country of Origin:
India
Duty Type:
Continious S1
Head vs Discharge:
21 M: 1800 LPH, 24 M: 1600 LPH, 27 M: 1450 LPH, 30 M: 1300 LPH, 33 M: 1100 LPH, 36 M: 850 LPH, 39 M: 700 LPH, 42 M: 600 LPH, 45 M: 400 LPH
Model:
Neon F150
Phase:
Single Phase
Pipe Size:
2.5x2.5 cm, 1x1 inch
Power:
1 HP, 0.75 Kw
Series:
Revo Series
Speed:
2800 RPM
Voltage range:
180- 240 V
