Description

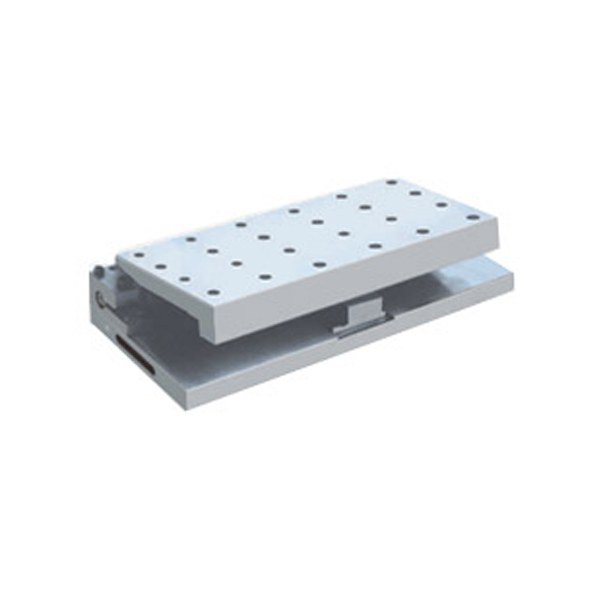

Uptech Engineering UL 40101 is one of the UL 401 series work tables made of high-quality alloy steel. It is designed with Firm clamp, which reduces the possibility of distortion and provides precise measurement, the setting of angles, utilizing slip gauge, and light machining. The Uptech engineering sine table is one of the power tools used for accurate squareness, flatness, and parallelism of a workpiece. The Ul 40101 Sine Bar does an efficient job avoiding the need to use multiple power tool accessories.

Product Attributes:

  • Centre Distance: 70 mm.
  • Inclination: 0- 45 degree.
  • Size: 150x120x65 mm.
  • Centre Distance between rollers is within 0.005mm.
  • M6 & M8 tapped holes for job clamping.
  • Accuracy in squareness, flatness, and parallelism: 0.010mm up to 200L and 0.015mm up to 450L.

Benefits:

  • Ideal for high accuracy grinding operations.
  • Positive locking at every angle, avoiding any distortion.
  • The angle is within ±5 seconds, thus, saves time.
  • In-built firm clamp reduces any possibility of distortion.
  • Low height device providing more wheel clearance.
Product Specifications

GENERAL

Brand:
Uptech Engineering
Centre Distance:
70 mm
Inclination:
0- 45 degree
Manufacturer Detail:
Uptech Engineering ,Gat No. 274, Nanekarwadi, Pune - Nasik Highway,Chakan, Tal. Khed, Dist. Pune - 410501 Maharashtra India.
Material:
High Quality Alloy Steel
Model:
UL 40101
Packer Details:
Uptech Engineering ,Gat No. 274, Nanekarwadi, Pune - Nasik Highway,Chakan, Tal. Khed, Dist. Pune - 410501 Maharashtra India.
Size:
150x120x65 mm
