Buy Uptech Engineering UL 10510 - 200x200x200 mm V Block with Clamp Online

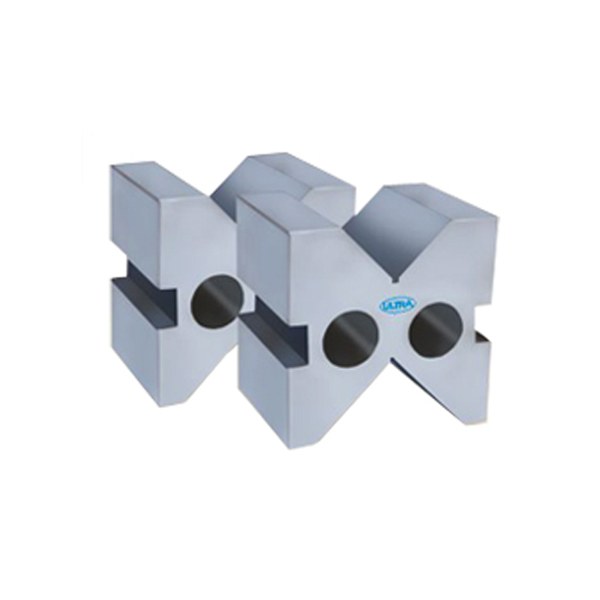

Uptech Engineering UL 10510 - 200x200x200 mm V Block with Clamp


Available on Request
Quantity
Minimum Order Quantity: 1 unit(s) Packing Qty: 1 Piece
OR
Reach Us At +91-9243011081

Uptech Engineering UL 10510 - 200x200x200 mm V Block with Clamp

Price

Available on Request
Delivery * Free delivery above Rs. 1000
* COD payment upto Rs. 5000
* 7 days easy replacement policy
* Bulk orders are shipped through surface and therefore might take more than 10 days for delivery

Check

Please enter pincode.
Services

Dispatch in 2-3 Business Days

Standard SD Replacement Policy

100% Authentic and Genuine Products. Secure and Safe Payments.

NA

NA

Description

Ideal for the layout work, this Hand tool is multi-purpose and are designed to hold square as well as round pieces with better precision and high accuracy. The blocks of this Hand Tools have stepped grooves. These grooves permit clamps to enter without any protrusion. The blocks can be used on either end, in addition to the side and base. The Uptech Engineering V Block with Clamp is perfectly aligned to the ground central at right angles and is parallel to the base and sides. The Vice and clamps are available in pairs to complete the set.

Product Attributes:

  • Accuracy as per IS 2949-1974.
  • Hardness 60+/-2 Rc.
  • Available as matched pair
  • Range: 10-200 mm Dia
  • Size: 200*200*200 mm
  • Two 900 ‘V’ angle of distinct capacities

Benefits:

  • Multi-purpose- holds Round and Square work both
  • Manufacture special sizes
  • Comes with Clamp
  • End face grinding
  • Square with Sides
Product Specifications

GENERAL

Application:
Grinding, Light Milling, Drilling and Inspection of Round and Square Jobs
Brand:
Uptech Engineering
Manufacturer Detail:
Uptech Engineering ,Gat No. 274, Nanekarwadi, Pune - Nasik Highway,Chakan, Tal. Khed, Dist. Pune - 410501 Maharashtra India.
Model:
UL 10510
Packer Details:
Uptech Engineering ,Gat No. 274, Nanekarwadi, Pune - Nasik Highway,Chakan, Tal. Khed, Dist. Pune - 410501 Maharashtra India.
Range:
10- 200 mm dia
Size:
200x200x200 mm
