Buy Uptech Engineering UL 10508 - 100x80x80 mm V Block with Clamp Online

Uptech Engineering UL 10508 - 100x80x80 mm V Block with Clamp


Available on Request
Quantity
Minimum Order Quantity: 1 unit(s) Packing Qty: 1 Piece
OR
Reach Us At +91-9243011081

Uptech Engineering UL 10508 - 100x80x80 mm V Block with Clamp

Price

Available on Request
Delivery * Free delivery above Rs. 1000
* COD payment upto Rs. 5000
* 7 days easy replacement policy
* Bulk orders are shipped through surface and therefore might take more than 10 days for delivery

Check

Please enter pincode.
Services

Dispatch in 2-3 Business Days

Standard SD Replacement Policy

100% Authentic and Genuine Products. Secure and Safe Payments.

NA

NA

Description

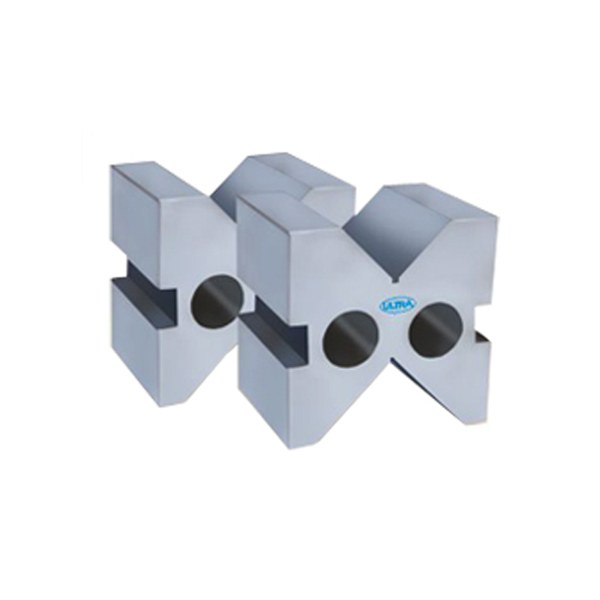

This Uptech Engineering V Block with Clamp can hold both Square and Round Work. Made up of hardened tool steel, the hand tools permits low as well as high clamping. At the stepped end, the V shape to the base is at 90 degrees. The two 900 ‘V’ angle is of different capacities to meet all requirements. It is central to make the product handy. The V angle is parallel to the base as well as the sides. The V-Block is used to hold round metal pipes or rods while performing drilling/milling activity.

Product Attributes:

  • Accuracy as per IS 2949-1974.
  • Hardness 60+/-2 Rc.
  • Matched Pair.
  • Range: 7-80 mm Dia
  • Size: 100*80*80 mm
  • Two 900 ‘V’ angle of distinct capacities.

Benefits:

  • Multi-purpose: It can hold Round and Square work both
  • Manufacture special sizes with the product
  • Comes with Clamp
  • End face grinding
  • Square with Sides
Product Specifications

GENERAL

Application:
Grinding, Light Milling, Drilling and Inspection of Round and Square Jobs
Brand:
Uptech Engineering
Manufacturer Detail:
Uptech Engineering ,Gat No. 274, Nanekarwadi, Pune - Nasik Highway,Chakan, Tal. Khed, Dist. Pune - 410501 Maharashtra India.
Model:
UL 10508
Packer Details:
Uptech Engineering ,Gat No. 274, Nanekarwadi, Pune - Nasik Highway,Chakan, Tal. Khed, Dist. Pune - 410501 Maharashtra India.
Range:
7- 80 mm dia
Size:
100x80x80 mm
