Buy Uptech Engineering UL 10202 - 50x40x40 mm Hardened and Ground V Block with Clamp Online

Uptech Engineering UL 10202 - 50x40x40 mm Hardened and Ground V Block with Clamp


Available on Request
Quantity
Minimum Order Quantity: 1 unit(s) Packing Qty: 1 Piece
OR
Reach Us At +91-9243011081

Uptech Engineering UL 10202 - 50x40x40 mm Hardened and Ground V Block with Clamp

Price

Available on Request
Delivery * Free delivery above Rs. 1000
* COD payment upto Rs. 5000
* 7 days easy replacement policy
* Bulk orders are shipped through surface and therefore might take more than 10 days for delivery

Check

Please enter pincode.
Services

Dispatch in 2-3 Business Days

Standard SD Replacement Policy

100% Authentic and Genuine Products. Secure and Safe Payments.

NA

NA

Description

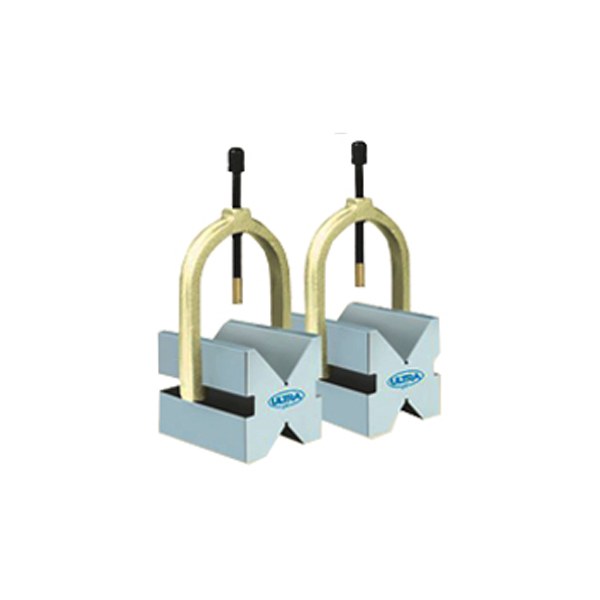

The Hardened and Ground V Blocks with Clamp from Uptech Engineering are one of the most preferred tools for taking jobs of multiple dimensions. The Ground V Block with Clamp is smaller than the outer width of the block. The hand tool is equipped with a side screw that can be adjusted to support the block. The support prevents tilting. The V shape to the base is at right angles at the stepped end. It is central and parallel to the base as well as sides. the This makes the Vices and Clamps handy. The block has a clearance hole to serves for the drilling purpose. Ground V Block with Clamp can also be used to remove dowel pins.

Product Attributes:

  • Size: 50*40*40 mm
  • Hardened and precision ground
  • Parallel sides
  • V is central
  • V is parallel to the base and sides

Benefits:

  • Accuracy for flatness, squareness, and parallelism within 0.006 mm.
  • Hardness 60+/-2 Rc.
  • perfect pair.
  • Comes with a clamp.
  • Use for end face, side face, as well as for right angle Grinding.
Product Specifications

GENERAL

Application:
Grinding, Light Milling, Drilling and Inspection of Round and Square Jobs during EDM operations
Brand:
Uptech Engineering
Manufacturer Detail:
Uptech Engineering ,Gat No. 274, Nanekarwadi, Pune - Nasik Highway,Chakan, Tal. Khed, Dist. Pune - 410501 Maharashtra India.
Model:
UL 10202
Packer Details:
Uptech Engineering ,Gat No. 274, Nanekarwadi, Pune - Nasik Highway,Chakan, Tal. Khed, Dist. Pune - 410501 Maharashtra India.
Range:
5- 30 mm dia
Size:
50x40x40 mm
