Description

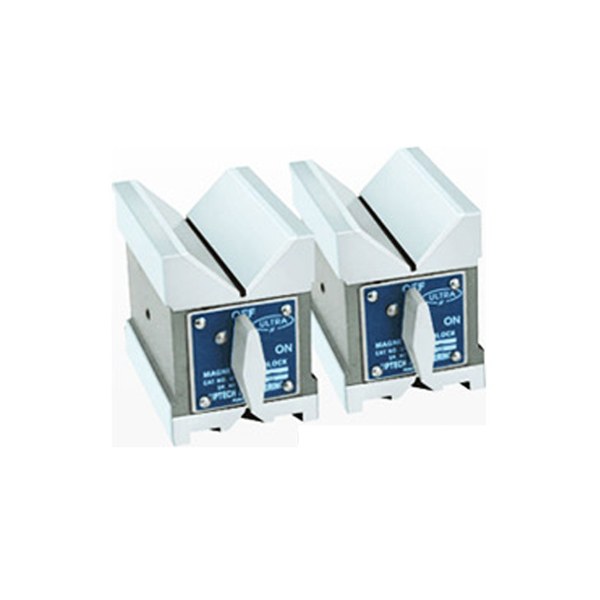

Uptech Engineering Magnetic V Block is an accurate machining jig used to hold a workpiece for various operations such as grinding, milling, and drilling. It is also used to inspect round and square jobs. The bigger V angle and the bottom holding surface of the Uptech Engineering UL 10102 are coated with a hard strip to make it wear resistant. In these hand tools, Vices & Clamps are used to hold the workpiece to perform machining operations on it. Pipe Vices are specifically used to hold the workpiece for milling and drilling operations. The uniform and strong magnetic attraction towards all three magnetic surfaces: Top, Bottom and, V face. The Uptech Engineering Magnetic V Block also has an on-off switch for easy and safe operation.

Product Attributes:

  • Dimensions: 76x56x75 mm
  • Pull Weight: 75kg
  • Range: 5-40 mm diameter
  • Hardness of V face: 60±2 Rc
  • Accuracy for Flatness, Squareness, and Parallelism is within 0.005mm up to 150mmL and 0.010mm for 200mmL of V block

Benefits:

  • Wear resistant
  • Strong and uniform magnetic attraction
  • On-off switch for safe operation
Product Specifications

GENERAL

Application:
Grinding, Light Milling, Drilling and Inspection of Round and Square Jobs
Brand:
Uptech Engineering
Manufacturer Detail:
Uptech Engineering ,Gat No. 274, Nanekarwadi, Pune - Nasik Highway,Chakan, Tal. Khed, Dist. Pune - 410501 Maharashtra India.
Model:
UL 10102
Packer Details:
Uptech Engineering ,Gat No. 274, Nanekarwadi, Pune - Nasik Highway,Chakan, Tal. Khed, Dist. Pune - 410501 Maharashtra India.
Pull Weight:
75 kg
Range:
5- 40 mm dia
Size:
75x56x75 mm
