Buy Unika MCTR-67 - 67 mm, TCT Meta Core Triple Hole Saw Online
Unika

Unika MCTR-67 - 67 mm, TCT Meta Core Triple Hole Saw


Available on Request
Quantity
Minimum Order Quantity: 1 unit(s) Packing Qty: 1 Piece
OR
Reach Us At +91-9243011081
Unika

Unika MCTR-67 - 67 mm, TCT Meta Core Triple Hole Saw

Price

Available on Request
Delivery * Free delivery above Rs. 1000
* COD payment upto Rs. 5000
* 7 days easy replacement policy
* Bulk orders are shipped through surface and therefore might take more than 10 days for delivery

Check

Please enter pincode.
Services

Dispatch in 2-3 Business Days

Standard SD Replacement Policy

100% Authentic and Genuine Products. Secure and Safe Payments.

NA

NA

Description
  • 3-ply cutters reducing tip crack even with hard use. Realizes light and speedy drilling and long lifetime.
  • The 25mm effective depth enables drilling ranging from thick steel plate to curved face drilling in thick metal pipes.
  • Adopts the step center drill that dampens impacts that occur when the center drill passes through.
  • Effective length: 25mm(Full depth: 25 mm)
  • Matching Drill: Electric drill/drilling machine/Percussion drill(rotating mode)

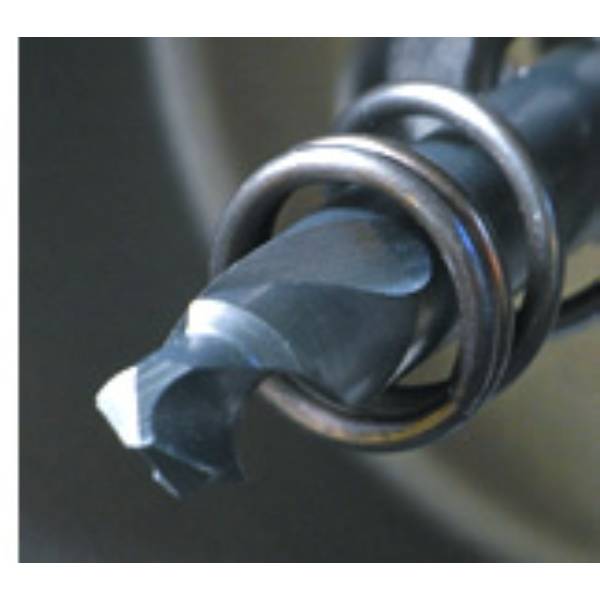

  • Ejector spring fitted as standard/compatible with pipes and stainless steel
  • Used in: Sheet metal (HB200 or less) Stainless steel (10mm ore less) Pipe, Aluminum (5mm ore less), FRP, PVC, Plastic.
  • 3-Ply Cutters: Cutting the shavings to one-third with respect to the cutting width using 3-ply cutters (outer, inner and intermediate cutting blades) has dramatically decreased cracks on the tip corner. This also includes inside cutting edges so debris can be discharged smoothly.

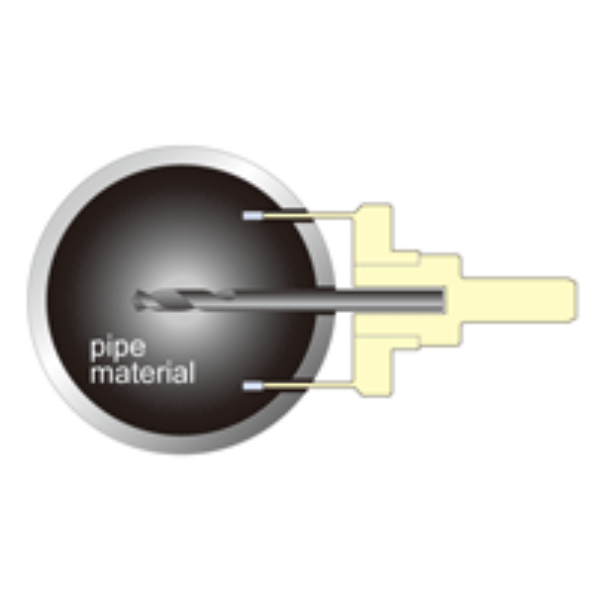

  • Compatible with Pipe-Drilling: Pipes and curved-surface materials can be drilled at a throat depth of 25 mm.
  • Hole Saw Drilling Efficiency: Hole saw drilling has a smaller cutting area compared to steel drills, enabling short-time drilling.

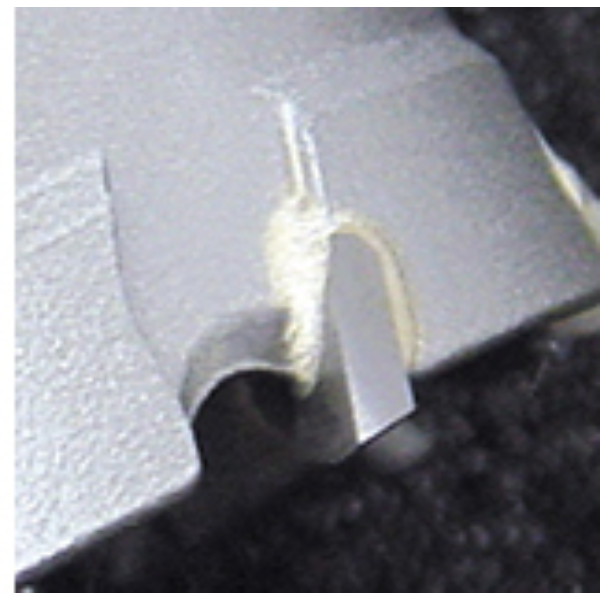

  • Drilling swarf discharge groove : Drilling swarf is efficiently discharged through these drilling swarf discharge grooves to the peripheral side.Clogging of drilling swarf between the work material and cutting edge makes drilling impossible, which leads to tips cracking and chipping

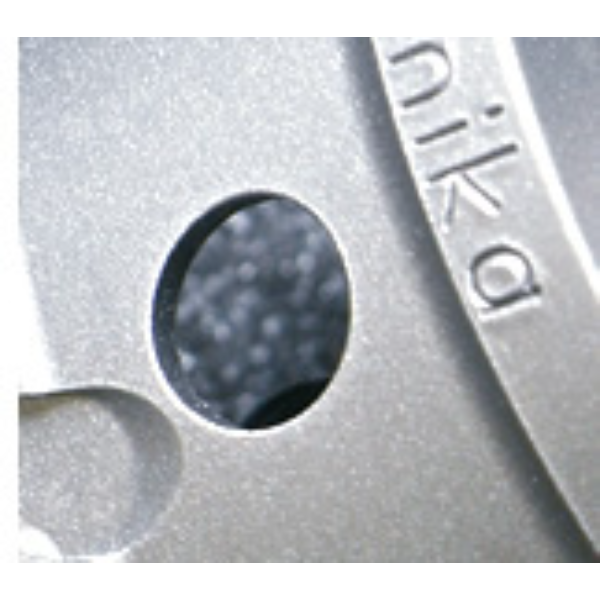

  • Shavings escape holeAn escape hole, which is convenient for shavings removal, is equipped with hole saws of all diameter.

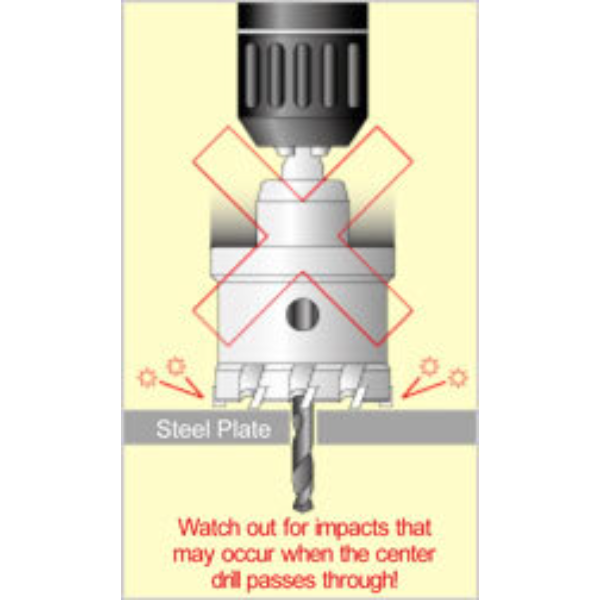

  • Newly developed step center drill: Two-step structure of the center drill tip end dampens impacts that occur when the center drill passes through, preventing cracking of the tungsten carbide/ultra-hard tip.

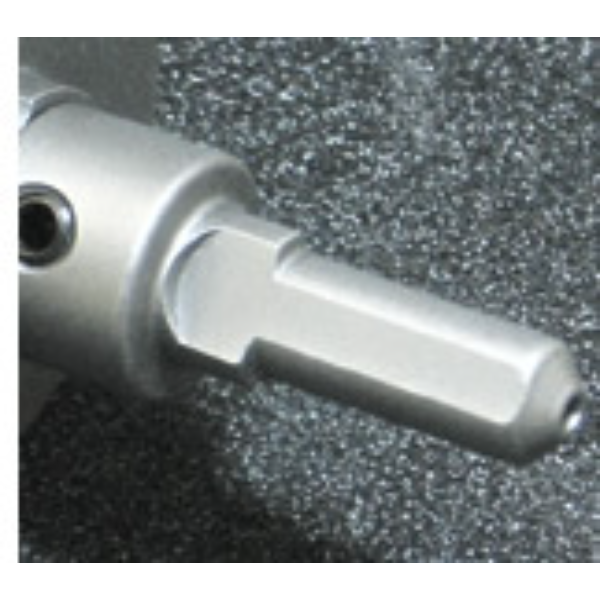

  • 10 mm/13 mm chuck combination shank: Allows for most drill chuck diameters.
  • Appropriate rotation speed: Use the drill at a rotation speed appropriate for the drilling work material and diameter.When drilling a thick plate with a thickness of 5 mm or more or for continuous cutting, select a lower rotation speed.
Product Specifications

GENERAL

Brand:
Unika
Country of Origin:
Japan
Diameter:
67 mm
Effective Length:
25 mm
Model Number:
MCTR-67
Shank Diameter:
10/13 mm
