Description

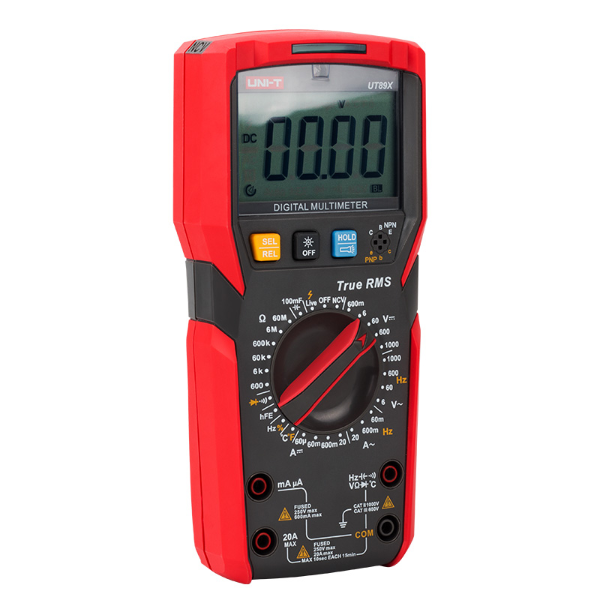

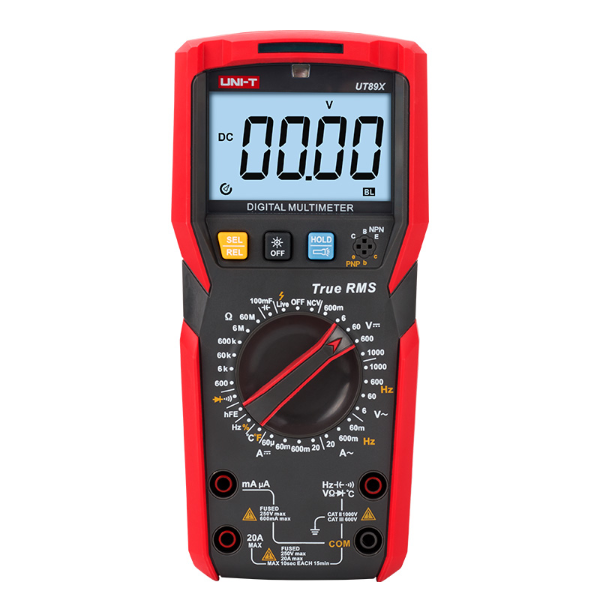

UT89X is a reliable hand-held 3 5/6 bit digital multimeter with true RMS sine wave measurement. It can measure Max. 1000V DC/AC voltage, Max. 20A DC/AC current, resistance, capacitance, frequency, diode, hFE, continuity and NCV, quickly distinguishing between neutral and live wires accurately. UT89X can measure temperature and detect neutral and live wires with a test lead. UT89XD can perform LED test. Equipped with audible and visible alarm, flashlight and auto backlight functions, this series can be used in dark environment. It attracts users with its bi-color durable case, modern exterior and multiple functions.

Features:

  • 1000V AC/DC? 20A AC/DC
  • True RMS, 6000 count
  • Dual range NCV test which quickly identifies neutral and live wires through light intensity
  • Audible/visual alarm
  • Capacitor charging indicator
  • Ergonomic design
  • Double injection molding
  • 1m drop proof
  • Flashlight; Auto backlight
Product Specifications

GENERAL

AC Current (A):
±(1%+12)
AC Voltage (V):
6V/60V/600/1000V, ±(0.8%+5)
Brand:
Uni-T
Capacitance (F):
±(2.5%+20)
Country of Origin:
China
DC Current (A):
±(0.8%+8)
DC Voltage (V):
±(0.5%+2)
Dimensions:
189x89x53 mm
Display:
61x36 mm
Display Count:
6000
Duty Cycle:
±(2%+5)
Frequency (Hz):
±(0.1%+4)
Manufacturer Details:
Uni-trend Technology (China) Co., Ltd. No.6, Industrial North 1st Road, Songshan Lake Park, Dongguan City, Guangdong Province, Post Code: 523 808
Model:
UT89X
Other Features:
True RMS, Live Wire Test, Audible/Visual Alarm, Diode/Continuity Test, Transistor hFE, Dual Range NCV Test, Auto Power Off, Low Battery Indication, Data Hold, Flashlight, Auto Backlight
Packer Details:
Uni-trend Technology (China) Co., Ltd. No.6, Industrial North 1st Road, Songshan Lake Park, Dongguan City, Guangdong Province, Post Code: 523 808
Power:
1.5V battery (R03) x 4
Product Color:
Red and Grey
Resistance:
±(0.8%+3)
Sampling Rate:
3 times/s
Standard Accessories:
Batteries, Test Lead, K-Type Temperature Probe
Temperature:
±(2%+8)
