Buy TVS BSC101 Star - 1D Laser Barcode Scanner Online
TVS

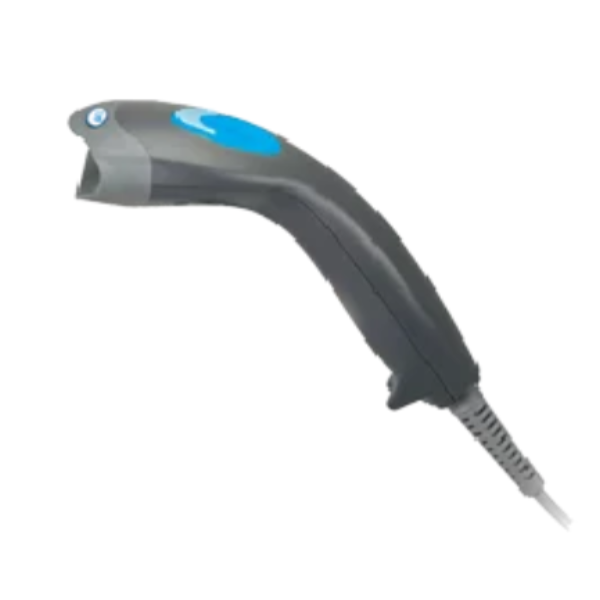

TVS BS-C101 Star Laser 1D Bardcode Scanner with Ultrscan Decoding Technology


Available on Request
Quantity
Minimum Order Quantity: 1 unit(s) Packing Qty: 1 Piece
OR
Reach Us At +91-9243011081
TVS

TVS BS-C101 Star Laser 1D Bardcode Scanner with Ultrscan Decoding Technology

Price

Available on Request
Delivery * Free delivery above Rs. 1000
* COD payment upto Rs. 5000
* 7 days easy replacement policy
* Bulk orders are shipped through surface and therefore might take more than 10 days for delivery

Check

Please enter pincode.
Services

Dispatch in 1-2 Business Days

Standard SD Replacement Policy

100% Authentic and Genuine Products. Secure and Safe Payments.

NA

NA

Description
  • Fastest in this segment with 330 scans per second
  • Increased resolution of 2500 pixels
  • Greater decoding accuracy
  • Auto-scan mode enables hands-free operation
  • Higher depth-of-field up to 300 mm enables decoding from longer distance
Product Specifications

GENERAL

Barcode:
Most popular 1D barcodes, incl. GS1 DataBar & PDF 417
Beeper Option:
Programmable tone & beep time
Brand:
TVS
Cable:
Standard 2.0M straight
Country of Origin:
India
Depth of Field:
35 200 mm UPC/EAN 100%, PCS=90%
Drop Durability:
Designed to withstand 1.0 M drops
EMC:
CE & FCC DOC compliance, VCCI, BSMI
Indicators LED:
Three colour LED green, red & blue
InputVoltage:
5 VDC +/- 10%
Laser Class:
CDRH Class Iia: IEC 608251: Class 1
Light Levels:
4,500 Lux fluorescence
Light Source:
650 nm visible laser diode VLD
Minimum Bar Width:
4 mil @ PCS=90% Code 39
Model:
BS-C101 Star
MPU:
32 bit
Operating Current:
200 mA
Operating Humidity:
5-95 % RH noncondensing
Operating temperature:
0-40 Degree C, 32-104 Degree F
Physical Dimensions:
L106.7 x D58.0 x H155.0 mm device only
Pitch / Roll / Skew angle:
65 Degree/ 30 Degree/ 65 Degree
Power Consumption:
1 W
Print Contrast:
30% @ UPC/EAN 100%
Scan Angle:
52 Degree
Scan Rate:
330 scans per second
Storage Temperature:
20-60 Degree C, 4-140 Degree F
System Interfaces:
Keyboard, RS232C, HID USB, wand
Warranty:
1 Year Onsite Warranty
Weight:
148 g stand excluded
