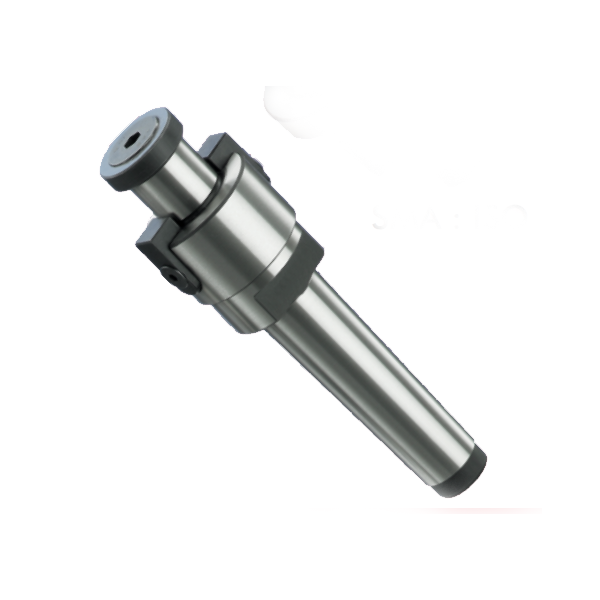

The Trumil - 40 mm Stub Milling Arbor is abrasion and wear-resistant tool ideal for firmly holding milling cutters. It creates a connection between the cutting tool and machine. This 40 mm Stub Milling Arbor uses milling and boring operations on various workpieces. The Stub Milling Arbor has a strong body that can withstand vibrations and jerks. The Milling Arbor conforms to standard specifications making it ideal for challenging operations and tough surfaces.
Product Specifications:
Brand: Trumil
Made In: India
Product: Stub Milling Arbor
Shank Taper: MT 5
Length: 129.5 mm
L1: 71.5 mm
L2: 47 mm
Ød1: 44.399 mm
Ød: 40 mm
ØD: 68 mm
A/F: 45 mm
M: M20
Material: 20MnCr5
Hardness: 55-58 HRc approx
Key Features:
Steel-hardened body with 55-58 HRc approximate hardness.
Corrosion-resistant
Wear-resistant
Specifications conform to IS: 8615 - 1977
