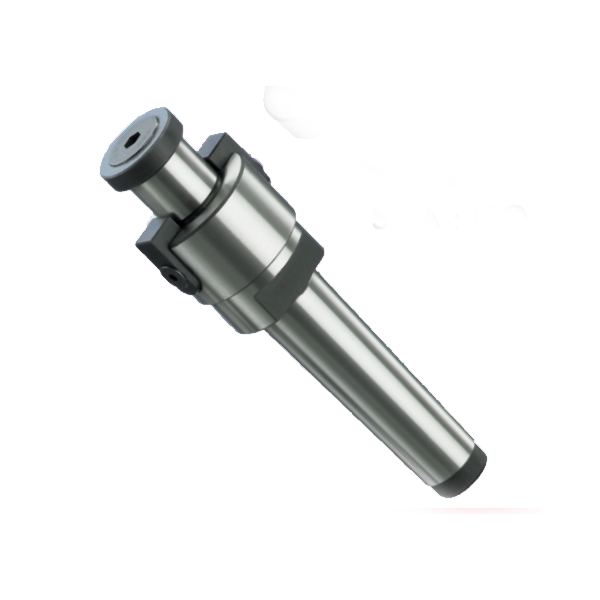

The Trumil - 27 mm Stub Milling Arbor is an ideal machining tool that holds rotating milling cutters firmly. This 27 mm Stub Milling Arbor is made of 20MnCr5 hardened steel, making it suitable for milling purposes. The Stub Milling Arbor is ideal for achieving the proper tool position. This Milling Arbor bears the responsibility of transmitting the torque and the rotary motion of the spindle to the tool. Thus, it establishes an ideal connection between the machine and the cutting tools.
Product Specifications:
Brand: Trumil
Made In: India
Product: Stub Milling Arbor
Shank Taper: MT 5
Length: 129.5 mm
L1: 71.5 mm
L2: 21 mm
Ød1: 44.399 mm
Ød: 27 mm
ØD: 48 mm
A/F: 45 mm
M: M20
Material: 20MnCr5
Hardness: 55-58 HRc approx
Key Features:
Abrasion and wear-resistant
It abides by IS: 8615 - 1977
