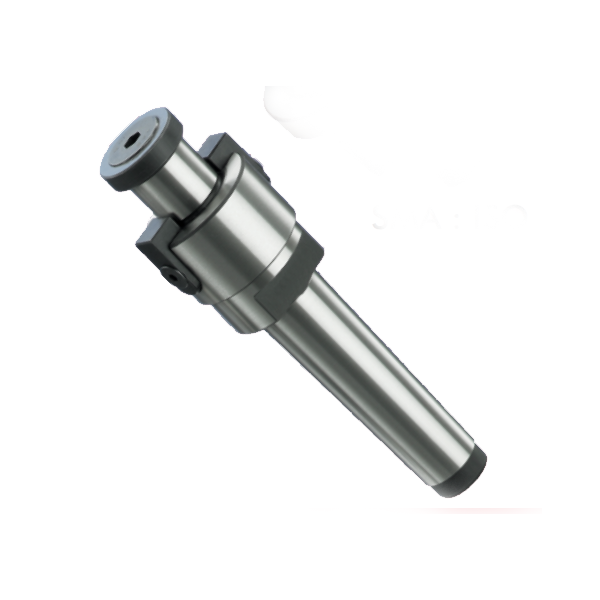

The Trumil - 16 mm Stub Milling Arbor is also known as the Face Milling Arbor. It is a draw bolt type that comes with tapping on the rear side. The company also provides spanners and spare tang on request that convert the draw bolt type arbor into tang type. The 16 mm Stub Milling Arbor is resilient as it is made of 20MnCr5 hardening steel. This Stub Milling Arbor has significantly fewer vibrations and thus enhanced machining. The Milling Arbor supports the machine's spindle while milling a larger surface area.
Product Specifications:
Brand: Trumil
Made In: India
Product: Stub Milling Arbor
Shank Taper: MT 5
Length: 102.5 mm
L1: 51.5 mm
L2: 17 mm
Ød1: 31.267 mm
Ød: 16 mm
ØD: 32 mm
A/F: 32 mm
M: M16
Material: 20MnCr5
Hardness: 55-58 HRc approx
Key Features:
It conforms to IS: 8615 - 1977.
Resistant to wear
