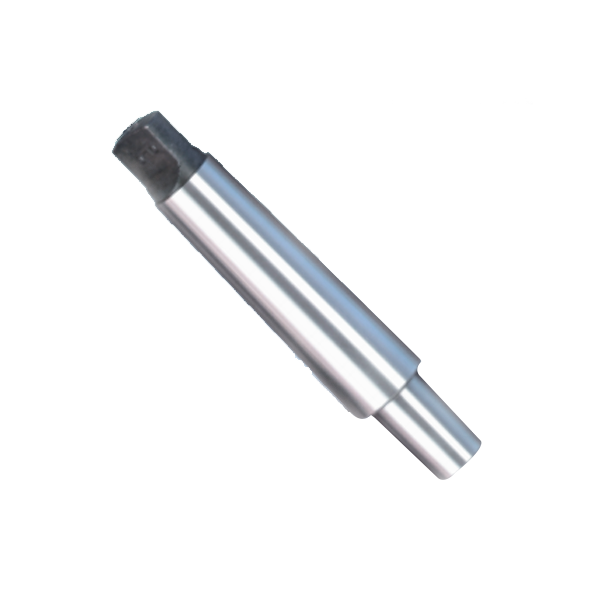

The Trumil - JT 6 Morse Taper Drill Chuck Arbor is a precise tool that allows you to adapt the drill to your milling machine or drill press. This Drill Chuck Arbor is one of the most preferred tools for pressing by engineers. This JT 6 Morse Taper Drill Chuck Arbor is made from a hardened steel material that provides longer shelf life under heavy usage. The Morse Taper Drill Chuck Arbor provides the finest accuracy and fit. Thus, the Drill Chuck Arbor is an important tool for machinists.
Product Specifications:
Brand: Trumil
Made In: India
Product: Morse Taper Drill Chuck Arbor
Model No.: MT - 4: 1⁄2" (J)
Shank Taper: MT 4
Drill Chuck Taper: JT 6
L: 117.5 mm
L1: 36.0 mm
L2: 25.40 mm
Ød: 17.170 mm
ØD: 31.267 mm
Material: 20MnCr5
Hardness: 55-58 HRc approx.
Certification: As per IS : 9094 (1) - 1979 (Reaffirmed 2001).
Key Features:
It has a precision ground run of 0.015 mm.
Allows firm and accurate fit.
