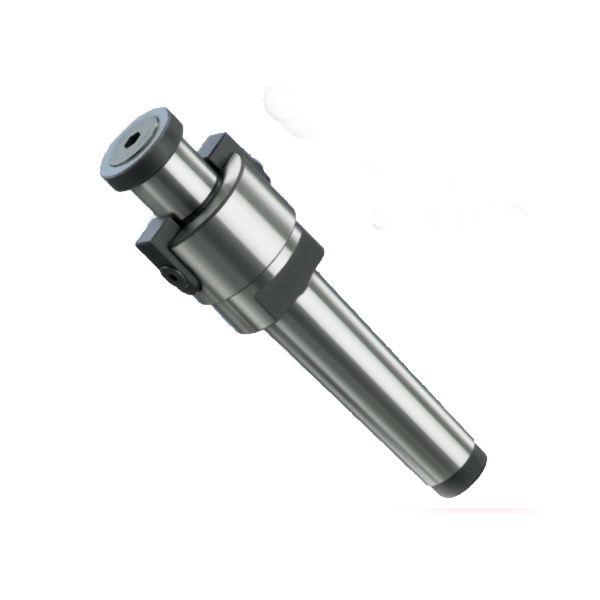

The Trumil - 22 mm Stub Milling Arbor is made of 20MnCr5. This case-hardening steel contains low carbon content. The 22 mm Stub Milling Arbor has good wear resistance and high surface hardness. The Stub Milling Arbor or the Face Milling Arbor are of draw bolt type. So, this Milling Arbor comes with tapping on the rear side. You can efficiently use it for boring and milling purposes as it provides the required length to the tool and allows it to reach the workpiece in operations. This Trumil - 22 mm Stub Milling Arbor is easy to use and can be operated under various climatic conditions.
Product Specifications:
Brand: Trumil
Made In: India
Product: Stub Milling Arbor
Shank Taper: MT 4
Length: 102.5 mm
L1: 51.5 mm
L2: 19 mm
Ød1: 31.267 mm
Ød: 22 mm
ØD: 40 mm
A/F: 32 mm
M: M16
Material: 20MnCr5
Hardness: 55-58 HRc approx
Key Features:
Specifications conform to IS: 8615 - 1977
The design and the length-to-diameter (L/d) ratio reduce the vibration during operations.
