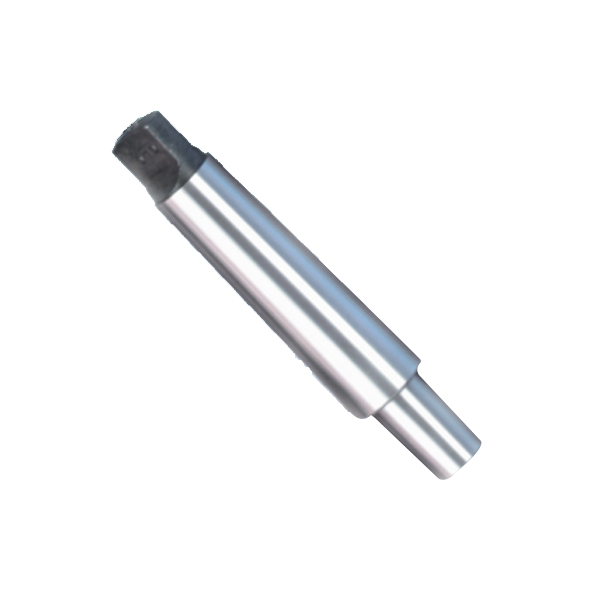

The Trumil - JT 3 Morse Taper Drill Chuck Arbor has steel hardened 20MnCr5 and has a hardness of 55- 58 HRc. The material of this Morse Taper Drill Chuck Arbor is of premium quality that is duly machine-tested by experts before manufacturing. This JT 3 Morse Taper Drill Chuck Arbor provides the finest fit while adapting drill chucks to milling machines, lathes, or drill presses. The Morse Taper Drill Chuck Arbor is resilient. Thus, the Drill Chuck Arbor is suitable for challenging work fields.
Product Specifications:
Brand: Trumil
Made In: India
Product: Morse Taper Drill Chuck Arbor
Model No.: MT - 3: 3⁄4" (J)
Quantity: 3 pieces
Shank Taper: MT 3
Drill Chuck Taper: JT 3
L: 94 mm
L1: 41.0 mm
L2: 30.96 mm
Ød: 20.599 mm
ØD: 23.825 mm
Material: 20MnCr5
Hardness: 55-58 HRc approx.
Certification: As per IS : 9094 (1) - 1979 (Reaffirmed 2001).
Key Features:
Resistant to abrasion, rust, and wear.
Precision ground runs out of 0.015 mm (maximum).
