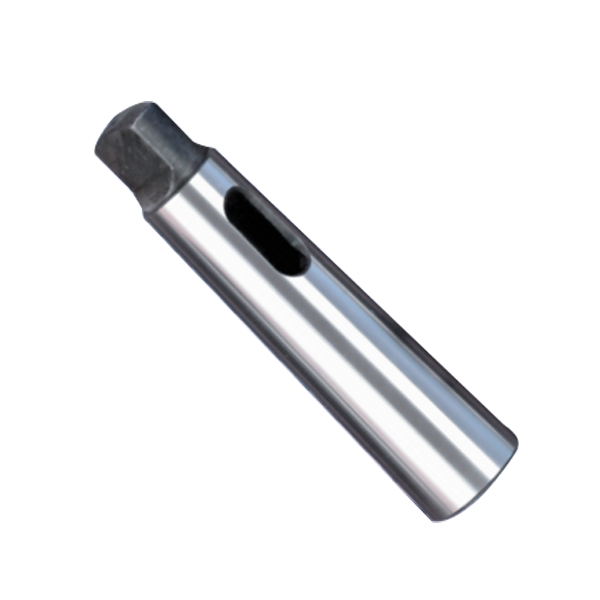

Trumil - Drill Sleeve or reduction sleeve is made from high-quality material. The manufacturers use 20MnCr5; case hardened to 55-58 HRc. The Drill Sleeve has a concentricity within 0.015 mm. This tapered, hollow steel shaft is ideal for a tapered shank of a cutting tool and adapts it to the drill press spindle. The Drill Sleeve provides protection and helps prevent the drill bit from slipping. It allows you to adapt smaller MT shank tools to the longer machine spindles. It has precisely controlled taper angles to enable perfect locking to the tool.
Product Specifications:
Brand: Trumil
Made In: India
Product: Drill Sleeve
Model: MT 3 4
Inner MT: 3
Outer MT: 4
Length: 140 mm
L1: 22.5 mm
Diameter: 31.267 mm
Weight: 0.380 kg
Hardness: 55-58 HRc
Concentricity: Within 0.015 mm
Key Features:
Precision ground internally and externally.
It is as per IS : 6702 - 1972 (Equivalent to DIN: 2185 - 1972 & ISO : 238 - 1974).
