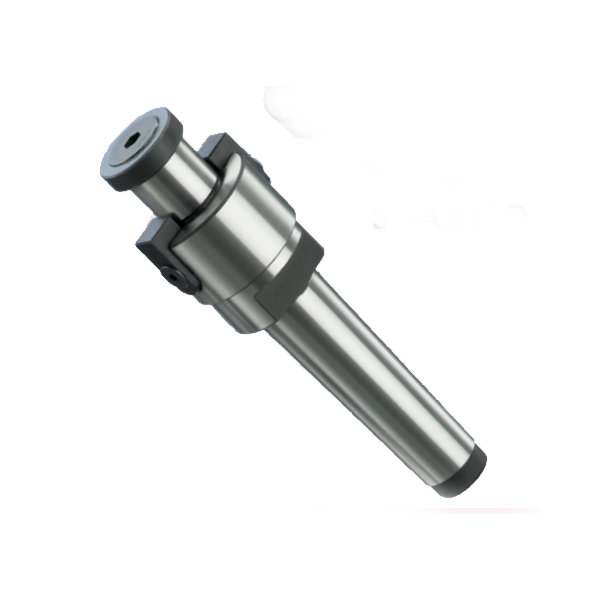

The Trumil - 27 mm Stub Milling Arbor is perfect for holding small cutters or saws. It fits into mill adapters, and you can use it for milling cutters. The Stub Milling Arbor is a precise machining tool. A Milling Arbor bears the key responsibility of transmitting the rotary motion of the spindle to the cutting tool in the entire cutting process. The Trumil Stub Milling Arbor is resilient as it comes with a 55- 58 HRc hardness. The material of this Milling Arbor is durable, long-lasting and does not degrade over time.
Product Specifications:
Brand: Trumil
Made In: India
Product: Stub Milling Arbor
Shank Taper: MT 3
Length: 81.0 mm
L1: 46 mm
L2: 21 mm
Ød1: 23.825 mm
Ød: 27 mm
ØD: 48 mm
A/F: 24 mm
M: M12
Material: 20MnCr5
Hardness: 55-58 HRc approx
Key Features:
Specifications conform to IS: 8615 - 1977
It is made up of 20 MnCr5, which offers wear resistance.
