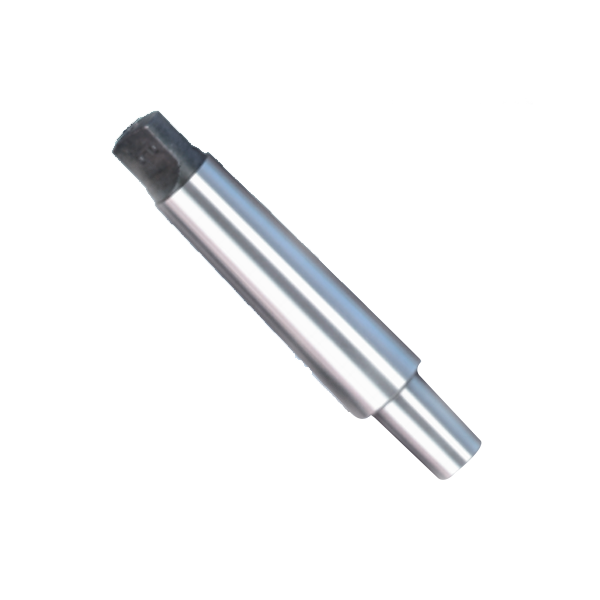

The Trumil - JT 1 Morse Taper Drill Chuck Arbor is a robust, wear-resistant, precise tool for machinists. It can be used easily by both DIYers and mechanical engineers. There is no strain caused by using this Morse Taper Drill Chuck Arbor. Hence, this tool can be used regularly. This JT 1 Morse Taper Drill Chuck Arbor allows you to adapt drill chucks to a machine's spindle. The Morse Taper Drill Chuck Arbor has a 20MnCr5 steel body. Moreover, the Drill Chuck Arbor offers a precision ground of 0.015 to master gauges.
Product Specifications:
Brand: Trumil
Made In: India
Product: Morse Taper Drill Chuck Arbor
Model No.: MT - 2: 1⁄4" (J)
Quantity: 3 pieces
Shank Taper: MT 2
Drill Chuck Taper: JT 1
L: 75 mm
L1: 25.0 mm
L2: 16.67 mm
Ød: 9.754 mm
ØD: 17.780 mm
Material: 20MnCr5
Hardness: 55-58 HRc approx.
Certification: As per IS : 9094 (1) - 1979 (Reaffirmed 2001).
Key Features:
It provides precision ground that helps master gauges.
Provides accurate fit
