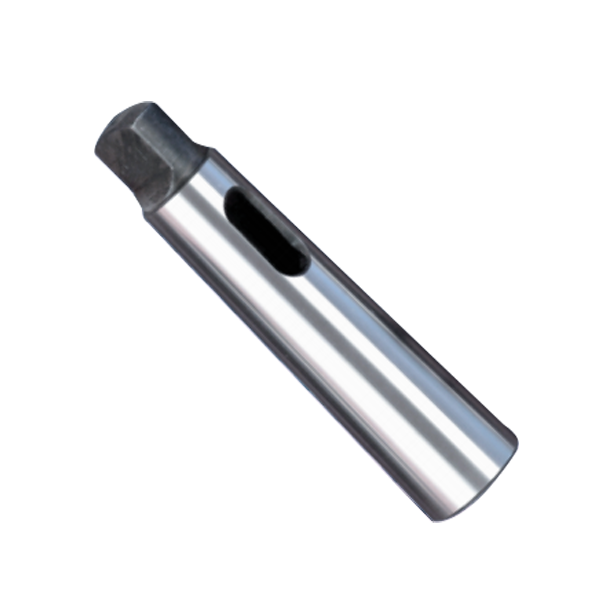

Trumil - Drill Sleeve is a morse tapered, hollow steel shaft. It fits the tapered shank of a cutting tool and makes it work for the drill press spindle. You can use this Drill Sleeve to adapt smaller morse taper shank tools to larger machine spindles. The Trumil - Drill Sleeve comes in quality material, and the manufacturers use advanced techniques to make it ideal for challenging work fields. This Drill Sleeve or reduction sleeve is made from 20MnCr5. It is case-hardened to 55-58 HRc and offers concentricity within 0.015 mm.
Product Specifications:
Brand: Trumil
Made In: India
Product: Drill Sleeve
Model: MT 1 5
Inner MT: 1
Outer MT: 5
Length: 156 mm
L1: 6.5 mm
Diameter: 44.399 mm
Weight: 1.460 kg
Hardness: 55-58 HRc
Concentricity: Within 0.015 mm
Key Features:
Precision ground internally and externally.
It is as per IS : 6702 - 1972 (Equivalent to DIN: 2185 - 1972 & IS : 238 - 1974).
