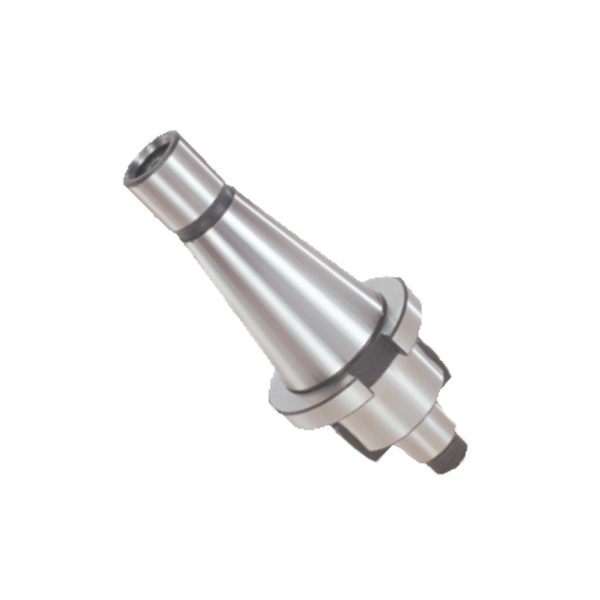

The Trumil - 40 mm Flange Type Stub Milling Arbor is a milling tool that you can use for mounting slot cutters. It is also known as Face Milling Arbor. You can use the 40 mm Flange Type Stub Milling Arbor in lathes and CNC machines. This Flange Type Stub Milling Arbor provides high performance and durability. The Stub Milling Arbor is made of 20MnCr5, with a hardness of 55-58 HRc. The optimal quality material of the Milling Arbor provides good wearing resistance.
Product Specifications:
Brand: Trumil
Made In: India
Product: Flange Type Stub Milling Arbor
Shank Taper: ISO 50
L: 126.8 mm
L1: 45.2 mm
L2: 30 mm
ØD h6: 40 mm
ØD: 90 mm
W: 16 mm
K: 8.5 mm
P: 66.7 mm
G: M12
M: M24
Material: 20MnCr5
Hardness: 55-58 HRc approx
Key Features:
It is resistant to rust.
Trumil uses quality assured material and advanced techniques to enhance longevity.
