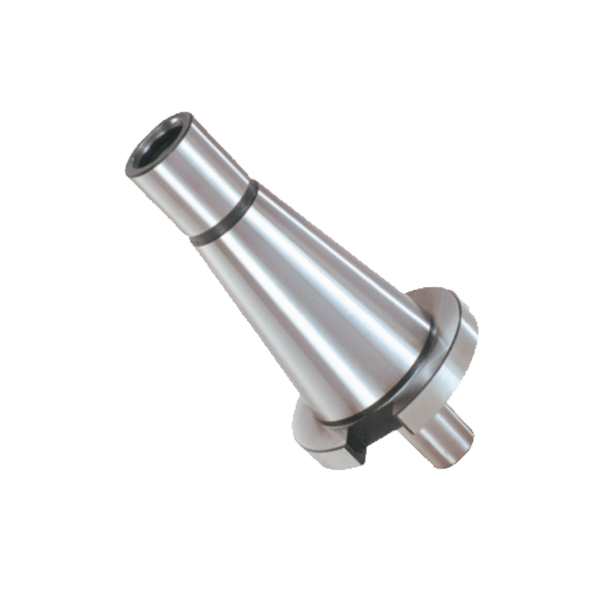

The Trumil - 3 mm Drill Chuck Arbor is a double-ended shaft of hardened steel. The 3 mm Drill Chuck Arbor has one end to fit into a machine's spindle while the other ends fit into a drill chuck's back. The Drill Chuck Arbor is made from 20MnCr5, which imparts robustness to the tool. The good quality material ensures long life and performance. Also, the cost of maintenance is quite low as the arbor is resistant to wear. This Drill Chuck Arbor is preferred by various engineers across different parts of the industrial sector.
Product Specifications:
Brand: Trumil
Made In: India
Product: Drill Chuck Arbor
Model No.: ISO - 30 JT - 3
Shank Taper: ISO 30
Drill Chuck Taper: JT
L: 68.4 mm
L1: 28.6 mm
L2: 30.960 mm
L3: 5.0 mm
Ød: 20.599 mm
ØD: 35 mm
M: M12
Material: 20MnCr5
Hardness: 55-58 HRc approx.
Key Features:
Trumil uses quality material and advanced technologies to make it resilient.
Excellent resistance to abrasion
