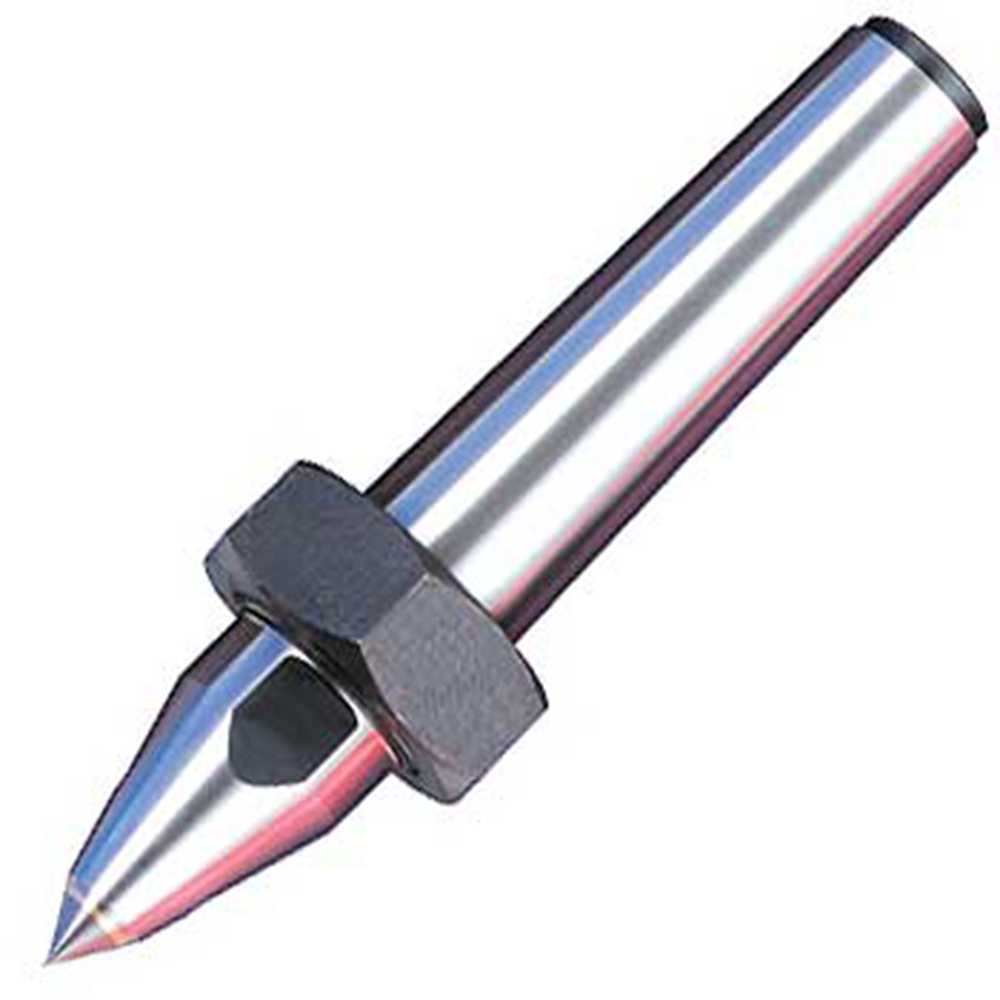

The Trumax- 14mm Extended Carbide Tipped Point CNC Dead Centre with Draw off Nut is manufactured using 20MnCr5. The small taper is made from bearing steel. The Trumax- 14mm Extended Carbide Tipped Point CNC Dead Centre with Draw off Nut is duly accustomed and modified to provide it wear resistance and breakage protection. The 14mm Extended Carbide Tipped Point CNC Dead Centre with Draw off Nut conforms to DIN- 807. The 14mm Extended Carbide Tipped Point CNC Dead Centre with Draw off Nut has a standard point angle of 60 Degrees. The Extended Carbide Tipped Point CNC Dead Centre with Draw Nut usually works upon CNC Lathe and uses draw-off nuts. The Dead Centre is ideal for industrial usage by professionals and experienced users. The Draw off Nut makes the tool very convenient because it enables users to remove the Dead Centre from Tail Stock with minimal effort.
Product Specifications:
Brand: Trumax
Made in: India
Product: Dead Centre
Model: MT5
Material: 20MnCr5 (bearing steel)
Length: 129.5mm
Diameter: 44.7mm
Key Features:
Wear-resistant
Long working life
