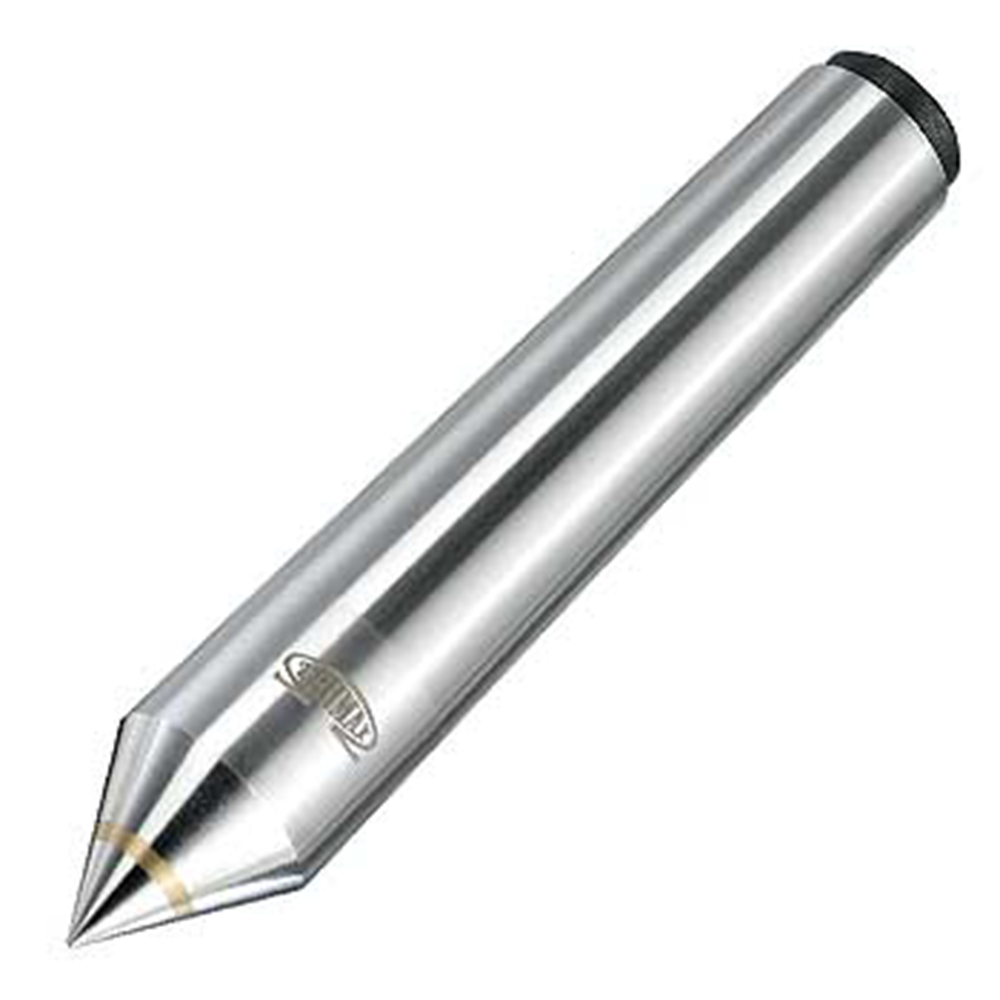

The Trumax – 53.5 mm Carbide Tipped Point Dead Center is an interchangeable Dead Center for Trumax CNC lathes. The 53.5 mm Carbide Tipped Point Dead Center comprises a 20MnCr5 alloy steel casing. The outer casing of the Carbide Tipped Point Dead Center has been hardened to 50-53 HRc. In addition, the Carbide Tipped Point Dead Center has been precision ground for smoothness and flatness. This Point Dead Center manufactured by Trumax is provided with a Tungsten Carbide tip. The Trumax – 53.5 mm Carbide Tipped Point Dead Center conforms to the IS 2534 - 1963 (equivalent to DIN 806-807) standard.
Product Specifications:
Manufactured by: Trumax
Country of Origin: India
Product: Point Dead Center
Type: Carbide tipped
Shank Taper: MT 1
Shank Length: 53.5 mm
Tip Length: 26.5 mm
Shank Diameter: 12.2 mm
Carbide Tip Diameter: 5 mm
Standard Point Angle: 60 degrees
Key Features:
Abrasion-resistant tip
Precision ground design
