Antenna Type:
3 Internal Omni, 2.4 GHz: 4 dBi & 5 GHz: 5 dBi
Certification:
CE, FCC & RoHS
Dimensions:
8.1x7.1x1.5 inch
Interface:
Gigabit Ethernet (RJ-45) Portx1
Operating Humidity:
10-90% (Non-Condensing)
Operating temperature:
0 to 40 deg C
Package Contents:

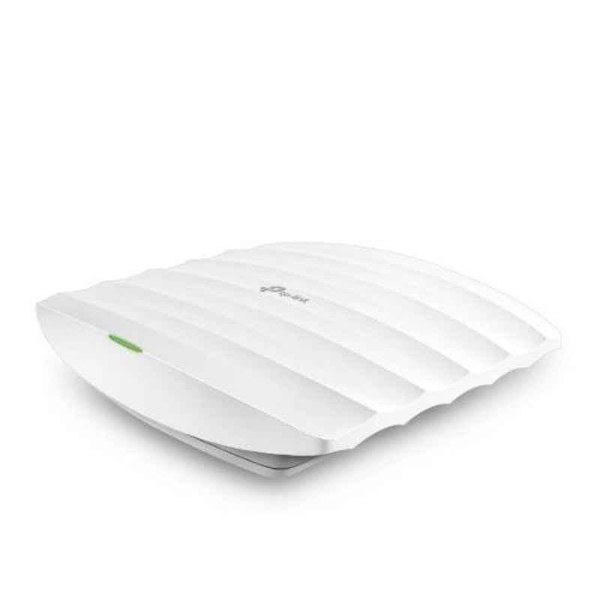

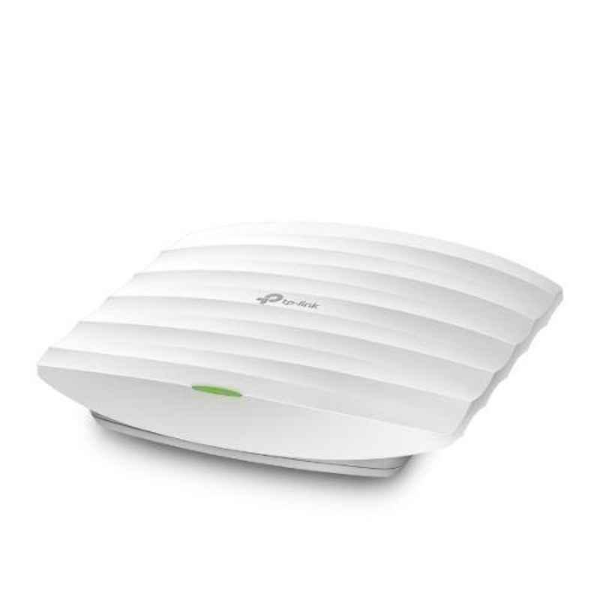

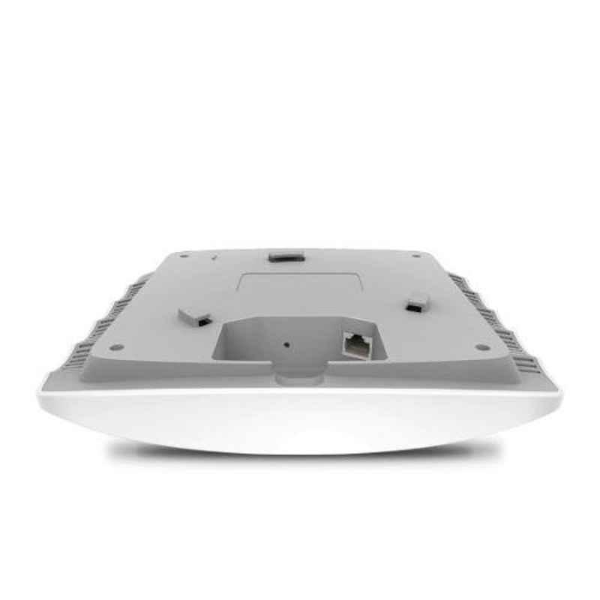

AC1350 Wireless MU-MIMO Gigabit Ceiling Mount Access Point EAP225, Passive POE Adapter, Power Cord, Mounting Kits & Installation Guide
Power Consumption:
EU: 10.5 W & US: 12.6 W
Power Supply:
802.3af/at POE & 24 V Passive PoE
Power Transmission:
CE: ó20 dBm, ó23 dBm, FCC: ó24 dBm & ó22 dBm
Remote Management Protocol:
Omada Cloud-Based Controller, Omada Hardware Controller, Omada Hardware Controller & Omada Software Controller
Security:
Wireless: Captive Portal Authentication, Access Control, Wireless Mac Address Filtering, Wireless Isolation Between Clients, SSID to VLAN Mapping, Rogue AP Detection & 802.1X Support
Signal Rate:
5 GHz: Upto 867 Mbps 2.4 GHz: Upto 450 Mbps
Storage Humidity:
5-90% (Non-Condensing)
Storage Temperature:
-40 to 70 deg C
System Requirements:
Windows: XP, Vista, Windows 7, Windows 8, Windows10 & Linux
Wireless:
Wireless: IEEE 802.11ac/n/g/b/a
Wireless Type:
Multiple SSIDs, Enable, Disable Wireless Radio, Automatic Channel Assignment, Transmit Power, Control, QoS, Seamless Roaming, Band Steering, Load Balance, MU-MIMO, Airtime Fairness,Beamforming, Rate Limit, Reboot Schedule, Wireless Schedule & Wireless Sta
