Buy TP-Link CPE510 - 5 GHz, 300 Mbps, 13 dBi Outdoor CPE Online

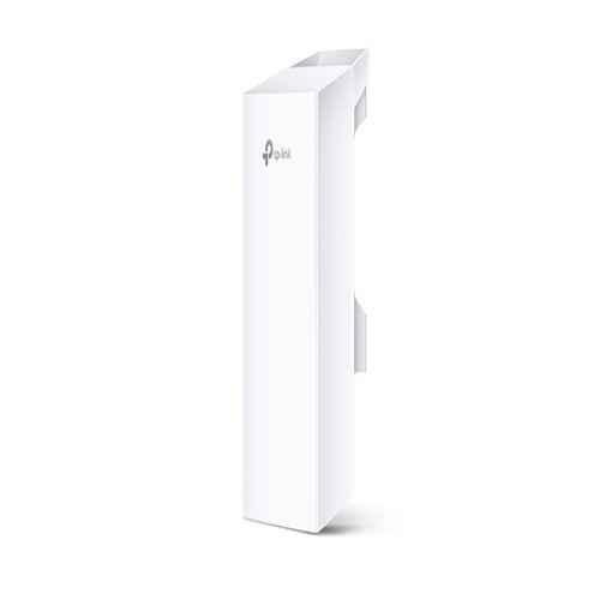

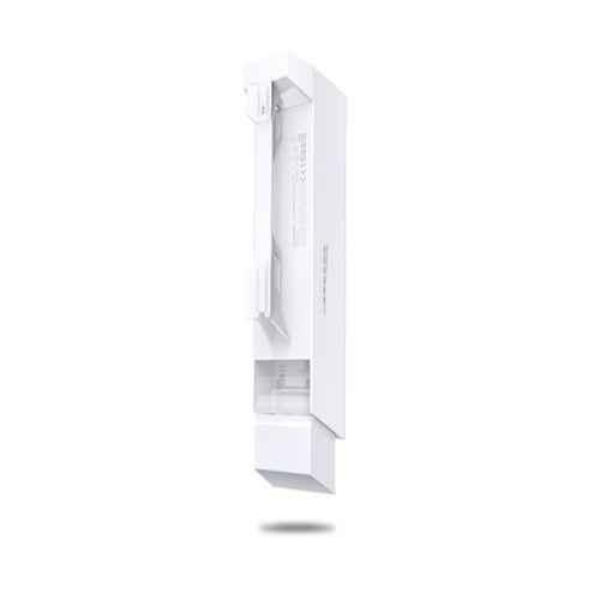

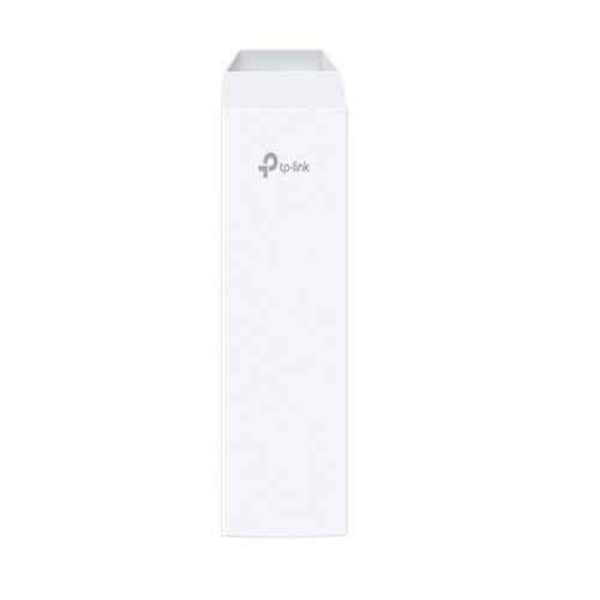

TP-Link CPE510 - 5 GHz, 300 Mbps, 13 dBi Outdoor CPE


Available on Request
Quantity
Minimum Order Quantity: 1 unit(s) Packing Qty: 1 Piece
OR
Reach Us At +91-9243011081

TP-Link CPE510 - 5 GHz, 300 Mbps, 13 dBi Outdoor CPE

Price

Available on Request
Delivery * Free delivery above Rs. 1000
* COD payment upto Rs. 5000
* 7 days easy replacement policy
* Bulk orders are shipped through surface and therefore might take more than 10 days for delivery

Check

Please enter pincode.
Services

Dispatch in 1-2 Business Days

Standard SD Replacement Policy

100% Authentic and Genuine Products. Secure and Safe Payments.

NA

NA

Description
  • Adjustable Transmission Power and Passive Poe Adapter Supports Upto 60m.
  • System-Level Optimizations: Optimized IGMP Snooping, Proxy for Multicast Applications Hardware Watch Dog.
  • Centralized Management System-Pharos Control.
Product Specifications

GENERAL

Antenna Type:
Built-in 13 dBi 2x2 Dual-Polarized Directional Antenna, Beam Width: 45 deg & 30 deg
Brand:
TP-Link
Certification:
CE, FCC, UL, IC, GS, PSB, C-tick, SAA, S-Mark & KC-mark, CE, FCC, RoHS & IPX5
Colour:
Power Status LEDs: Green
Configuration:
Wireless: Pharos Maxterm TDMA Technology, 802.11a, n Modes, Selectable Channel Width: 5, 10, 20, 40 MHz, Automatic Channel Selection, Transmission Power Control, Dynamic Frequency Selection, WDS Enable, Disable & Security: WPA, WPA2, WPA-PSK, WPA2-PSK (AE
Country of Origin:
India
Dimensions:
224x79x60 mm, POE Adapter: 110x57x33.5 mm
Efficiency:
>80%
Enclosure:
Outdoor ASA Stabilized Plastic Material & IPX5 Waterproof Certification
Frequency:
5.15-5.85 GHz
Input:
100-240 V AC & 50-60 Hz
Interface:
1 10, 100 Mbps Shielded Ethernet Port, 1 Grounding Terminal & 1 Reset Button, POE Adapter: 1 AC Jack with Earth Ground, 1 10, 100 Mbps Shielded Ethernet Port (Power + Data) & 1 10, 100 Mbps Shielded Ethernet Port
Memory:
64 MB DDR2 RAM & 8 MB Flash
Model:
CPE510
Number of Buttons:
Remote Reset Button
Operating Humidity:
10-90% (Non-Condensing)
Operating temperature:
0 to 40 deg C
Output:
24 V DC, 0.5 Amp Max & +4, 5 Pins & -7, 8 Pins
Package Contents:
Outdoor Wireless CPE, 24V 0.5A Passive POE Adapter, Pole Mounting Straps, AC Power Cord & Installation Guide
Power Consumption:
Max. 10.5 W
Power Supply:
Passive Power over Ethernet via LAN0 & Voltage range: 16-27 V DC
Power Transmission:
23 dBm & 200 mW
Processor:
Qualcomm Atheros Enterprise 560MHz CPU & MIPS 74Kc
Protection:
15 kV ESD Protection & 6 kV Lightning Protection
Protocol:
Proprietary: TDMA Mode
Remote Management Protocol:
Discovery & Remote Management via Pharos Control application, HTTP/HTTPS Web-Based Management, System Log, SNMP Agent, Ping Watch Dog, Dynamic DDNS & SSH Server
Speed:
Wireless: Upto 300 Mbps, Upto 144.4 Mbps, Upto 72.2Mbps (10MHz,Dynamic) & Upto 36.1 Mbps
Storage Humidity:
5-90% (Non-Condensing)
Storage Temperature:
-40 to 70 deg C
System:
Tools: Wireless Signal Quality Indicators, Signal Strength, Noise, Transmit CCQ, CPU, Memory, Monitors: Throughput, Stations, Interfaces, ARP, Routes, WAN, DHCP, Spectrum, Analyzer, Speed Test, Ping & Traceroute
System Requirements:
Windows: 98SE, NT, 2000, XP, Vista or Windows 10, Windows 8, Windows 7, MAC OS, NetWare & UNIX or Linux
Warranty:
3 Years
Wireless:
Wireless: IEEE 802.11a/n
