Buy Thales Cogent CS500F - Multifinger Scanner with CMI BMT-20 Binoculars Type Dual Iris Imager (Combo) Online
Thales

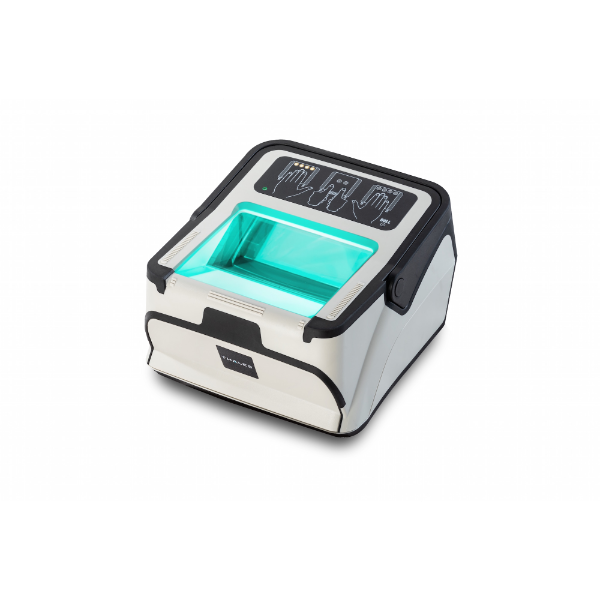

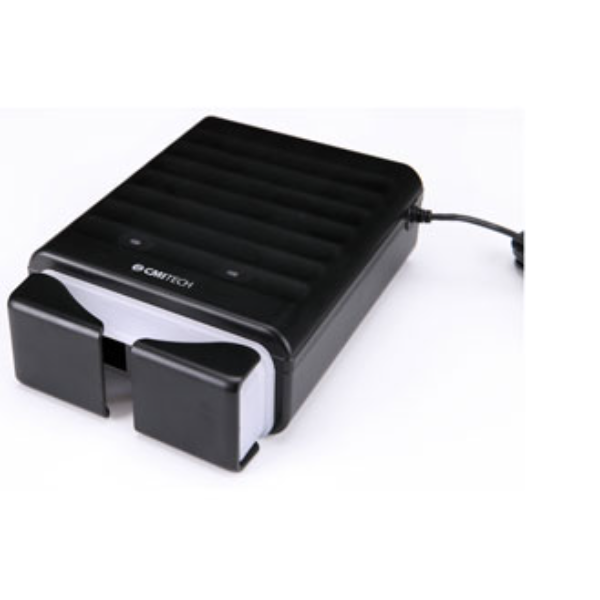

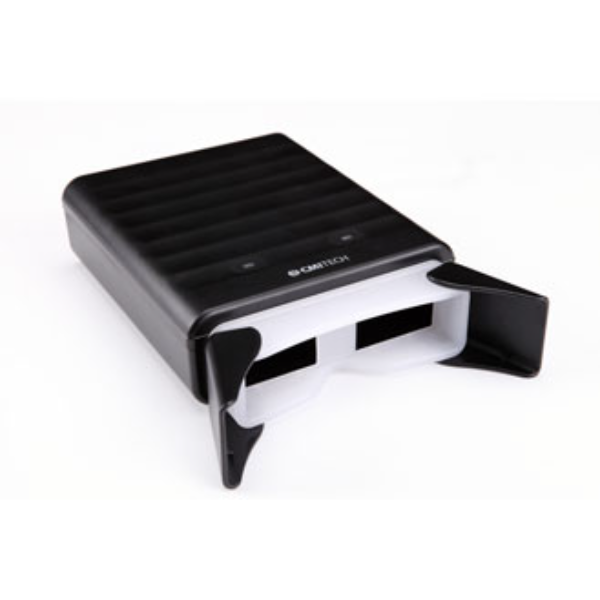

Thales Cogent (CS500F - Multifinger Scanner & CMITech BMT20 Dual Iris Scanner Combo)


Available on Request
Quantity
Minimum Order Quantity: 1 unit(s) Packing Qty: 1 Kit
OR
Reach Us At +91-9243011081
Thales

Thales Cogent (CS500F - Multifinger Scanner & CMITech BMT20 Dual Iris Scanner Combo)

Price

Available on Request
Delivery * Free delivery above Rs. 1000
* COD payment upto Rs. 5000
* 7 days easy replacement policy
* Bulk orders are shipped through surface and therefore might take more than 10 days for delivery

Check

Please enter pincode.
Services

Dispatch in 2-3 Business Days

Standard SD Replacement Policy

100% Authentic and Genuine Products. Secure and Safe Payments.

NA

NA

Description
  • AUTOMATIC SEQUENCE CHECKING: guarantees a correct scanning sequence.
  • ROLLED FINGERPRINT CAPTURING: displays in Realtime, self-adaptive to rolling speed and directions, seamless composite image generation, automatic stop detection.
  • SEGMENTATION: automatic segmentation of four- slap and two thumbs fingerprint images in single flat images.
  • CORRECT POSITION AND SLAP COMPLETENESS CHECK: Checks for correct finger placing; checks for incomplete slaps due to missing fingers. SLIDE DETECTION FOR FLAT PRINTS: detects deformations of fingerprints due to sliding during acquisition.
  • STANDARD OUTPUT FORMAT: Creation of ANSI/ NIST-ITL-1-2007/2011 type 1, 2, 4 and 14 records - EFTS71 output format support.
  • ELIMINATION OF LATENT PRINTS: elimination of latent prints originated from recent scans.
  • AUTOMATIC ACQUISITION START AND STOP: sensing of finger placement and automatic acquisition of the image with the highest quality. Quality thresholds for images can be set through the Multiclan SDK.
  • HALO ELIMINATION: elimination of halo due to moist fingerprints during acquisition.
  • IMAGE QUALITY CHECKING: dynamic estimation of fingerprint image quality during scanning process; NISTIR7151 quality check.
  • IMAGE COMPRESSION: FBI certified WSQ compression; further compression formats available are jpeg and jpeg2000.
  • Ideal for national and civil ID programs
  • Enrolment of non-acclimated subjects including children to 5 years of age
  • Lightweight and robust with IP64 rating
  • Powered from USB 2.0 connection
  • Usable in bright sunlight conditions
Product Specifications

GENERAL

Active Scanning Window:
Flat four fingers up to 3.2 inch x 3.0 inch - Two flat thumbs up to 3.2 inch x 3.0 inch - Rolled finger up to 1.6 inch x 1.6 inch- 500 dpi
Brand:
Thales
Certifications:
CE, FCC, RoHS, CB
Depth of Field:
30 mm
Dimensions:
219x161x58 mm
Durability:
IP64 intrusion prevention standard
External LED indications for operator assisted positioning:
Red: Device position is too high, Blue: Device position is too low, Green: Device position is OK, White: Image capture in progress
Eye safety standard:
IEC 62471, IEC 60825-1
Humidity:
10 to 90% RH, non-condensing
Image output:
Meets or exceeds ISO 19794-6
Image Quality and Format:
FBI IAFIS IQS Appendix F (FAP60) & Mobile ID Appendix F certified, ANSI/NIST-ITL 1-2007/2011, ISO/IEC FCD 9794-4, ANSI/NIST-ITL 1-2000, ANSI/NIST-ITL 1-2000 Interpol Implementation
Inter-pupillary distance covered:
40 to 90 mm
Interface:
USB 2.0 High Speed
Internal LED for pupil contraction:
Broadband visible (white)
IR illumination for iris imaging:
Dual LED: wavelengths of 850 nm nominal (-60
Iris image pixel resolution:
640 x 480 pixels
Model:
Cogent CS500F
MTF / spatial resolution:
Exceeds 4.0 lp/mm @ > 60% contrast
Operating temperature:
0-50 Degree C
Operating Temperature Range:
0 to 50 Degree C
Optical path distance:
350 to 380 mm
OS compatibility:
Windows 7, 8, 8.1 and 10, both 32 and 64 bit versions Linux Ubuntu 12.04, 14.04 and 16.04 LTS Android 4.0 and above
PC hardware requirements:
PC/xX86 platform: Intel® Atom™ or above processor ARM: Cortex A9 quad core processor
Pixel resolution:
18.4 to 20 pixels/mm
Power:
USB 2.0 (500 mA at 5V)
Storage Temperature:
-20-60 Degree C
Supported Operating System:
Microsoft Windows up to Win10 in 32-bit and 64-bit configuration, Linux Ubuntu distributions in 32-bit and 64-bit configuration Android
Time of capture:
Typically around 0.5 second, from time of head placement
Weight:
680 grams
