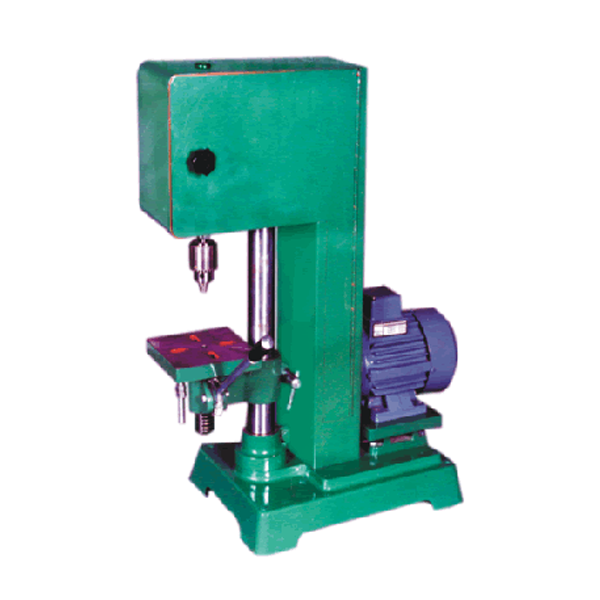

Tapax - 6 mm Silicone Liner Cone Tapping Machine without Accessory

Price

Available on Request
Delivery * Free delivery above Rs. 1000
* COD payment upto Rs. 5000
* 7 days easy replacement policy
* Bulk orders are shipped through surface and therefore might take more than 10 days for delivery

Check

Please enter pincode.
Services

Dispatch in 14-15 Business Days

Standard SD Replacement Policy

100% Authentic and Genuine Products. Secure and Safe Payments.

NA

NA

Description

This product comes without accessories like Motor, Drill Chuck, Belt, Switch, Wiring, Bhungli & Arbour. It has a head crafted out of cast iron honed to perfection and a spindle made from EN8. It has base-wide enough to stand heavy jobs and has slots provided to provide ease of holding. The 6 mm Silicone Liner Cone Tapping Machine weighs around- 50kgs, thus putting it in the category of lightweight machines.

Product specifications:

Spindle Travel/Table travel (6mm): 60 mm.

Distance Spindle to Column: 80 mm.

Distance between chuck to the base: 190 mm.

Distance between chuck to work table: movable.

The diameter of Column: 47 mm.

Motor Single Phase or Three Phase.

Warranty-1 Year

Drilling Capacity-3 mm

Size Base Plate: 370x250 mm

Work Table size: 150x150 mm

Weight-50 kg

Depth- 540 mm

Motor Speed- 1440 rpm

Capacity-6 mm

Motor Power-0.25 HP

Height-650 mm

Width-270 mm

Key product:

Cost-efficient

Product Specifications

GENERAL

Brand:
Tapax
Country of Origin:
India
Diameter of Column:
47 mm
Distance Between Chuck to Base:
190 mm
Distance Between Chuck to Work Table:
Movable
Distance Spindle to Column:
80 mm
Drilling Capacity:
3 mm
Forwards Speeds Range:
480/750/1400
Material:
Silicone Liner Cone
No of Spindle Speed:
3
Overall Height:
650 mm
Overall Width:
270 mm
Reverse Speeds Range:
480/750/1401
Size of Base Plate:
370x250 mm
Size of Work Table:
150x150 mm
Spindle Travel:
60 mm
Tapping Machine Capacity:
6 mm
Warranty:
1 Year
Weight:
50 Kg
