Tapax - 6 mm Lather Cone Tapping Machine without Accessory


Available on Request
Quantity
Minimum Order Quantity: 1 unit(s) Packing Qty: 1 Piece
OR
Reach Us At +91-9243011081

Tapax - 6 mm Lather Cone Tapping Machine without Accessory

Price

Available on Request
Delivery * Free delivery above Rs. 1000
* COD payment upto Rs. 5000
* 7 days easy replacement policy
* Bulk orders are shipped through surface and therefore might take more than 10 days for delivery

Check

Please enter pincode.
Services

Dispatch in 14-15 Business Days

Standard SD Replacement Policy

100% Authentic and Genuine Products. Secure and Safe Payments.

NA

NA

Description

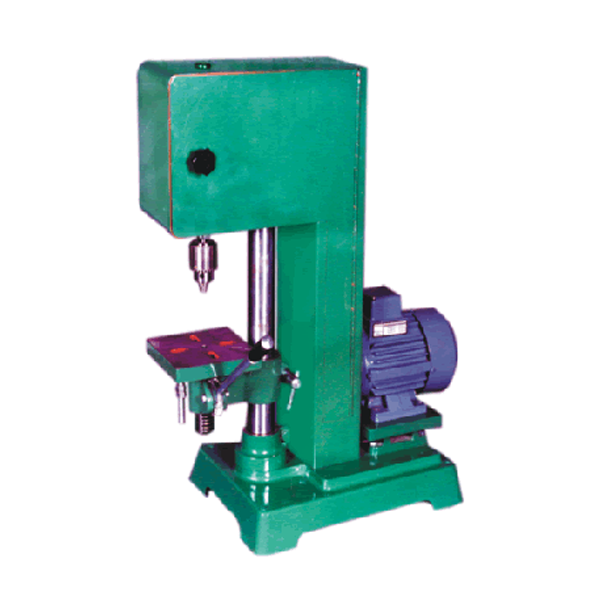

Tapax - 6 mm Lather Cone Tapping Machine comes without accessories like- Motor, Drill Chuck, Belt, Switch, Wiring, Bhungli & Arbour. It has a 6mm Tapping Machine's clutch cone. Its head is designed from closed-grain cast iron and cast perfectly between the column and the spindle. The spindle is made from EN8 and deals with distortions, and it is mounted on roller bearings. The table can be vertically powered and is designed to provide a sufficient surface area.

Product specifications:

Spindle Travel/Table travel - 60 mm.

Distance Spindle to Column: 80 mm.

Distance between chuck to the base: 190 mm.

Distance between chuck to work table: movable.

V-Belt for Motor (Outside): A36.

The diameter of Column: 47 mm.

Warranty offered- 1 Year

Drilling Capacity- 3 mm

Base Plate size: 370x250 mm

Work Table: 150x150 mm

Weight- 50 kg

Motor Speed- 1440 rpm

Capacity- 6 mm

Motor Power- 0.25 HP

Height-650 mm

Width - 270 mm

Key features:

Sturdy design

Product Specifications

GENERAL

Brand:
Tapax
Country of Origin:
India
Diameter of Column:
47 mm
Distance Between Chuck to Base:
190 mm
Distance Between Chuck to Work Table:
Movable
Distance Spindle to Column:
80 mm
Drilling Capacity:
3 mm
Forwards Speeds Range:
480/750/1400
Material:
Leather Cone
No of Spindle Speed:
3
Overall Height:
650 mm
Overall Width:
270 mm
Reverse Speeds Range:
480/750/1401
Size of Base Plate:
370x250 mm
Size of Work Table:
150x150 mm
Spindle Travel:
60 mm
Tapping Machine Capacity:
6 mm
Weight:
50 Kg
