Buy Tapax - 6 mm Lather Cone Tapping Machine with Accessory Online

Tapax - 6 mm Lather Cone Tapping Machine with Accessory


Available on Request
Quantity
Minimum Order Quantity: 1 unit(s) Packing Qty: 1 Piece
OR
Reach Us At +91-9243011081

Tapax - 6 mm Lather Cone Tapping Machine with Accessory

Price

Available on Request
Delivery * Free delivery above Rs. 1000
* COD payment upto Rs. 5000
* 7 days easy replacement policy
* Bulk orders are shipped through surface and therefore might take more than 10 days for delivery

Check

Please enter pincode.
Services

Dispatch in 14-15 Business Days

Standard SD Replacement Policy

100% Authentic and Genuine Products. Secure and Safe Payments.

NA

NA

Description

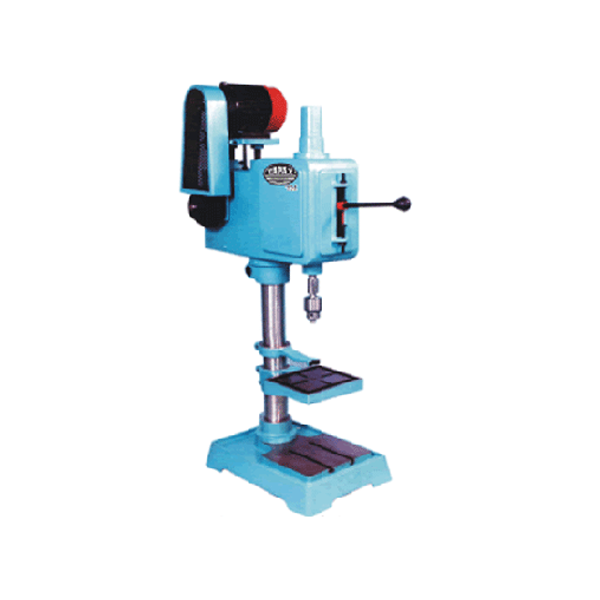

Tapax Lather Cone Machine comes with a set of accessories including- Motor, Drill Chuck, Belt, Switch, Wiring, Bhungli & Arbour. It has been designed to provide a rigid and long-lasting product to the customers. Its head is made using cast iron, and its spindle is made from EN8. The base of the product provides sufficient space for heavy jobs and has slots for a better grip.

Product specifications:

Spindle Travel/Table travel (6mm): 60 mm.

Distance Spindle to Column: 80 mm.

Distance between chuck to the base: 190 mm.

Distance between chuck to work table: movable.

The diameter of Column: 47 mm.

Spindle Speed- 3

1 Year Motor Warranty

Drilling Capacity-3 mm

Work Table Size : 150x150 mm

Weight- 50 kg

Depth - 540 mm

Motor Speed-1440 rpm

Capacity-6 mm

Motor Power- 0.25 HP

Height-650 mm

Width- 270 mm

Key features:

Powerful, sturdy body

Product Specifications

GENERAL

Brand:
Tapax
Country of Origin:
India
Diameter of Column:
47 mm
Distance Between Chuck to Base:
190 mm
Distance Between Chuck to Work Table:
Movable
Distance Spindle to Column:
80 mm
Drilling Capacity:
3 mm
Forwards Speeds Range:
480/750/1400
Material:
Leather Cone
No of Spindle Speed:
3
Overall Height:
650 mm
Overall Width:
270 mm
Reverse Speeds Range:
480/750/1401
Size of Base Plate:
370x250 mm
Size of Work Table:
150x150 mm
Spindle Travel:
60 mm
Tapping Machine Capacity:
6 mm
Weight:
50 Kg
