Buy Tapax - 25 mm Silicone Liner Tapping Machine with Accessory Online

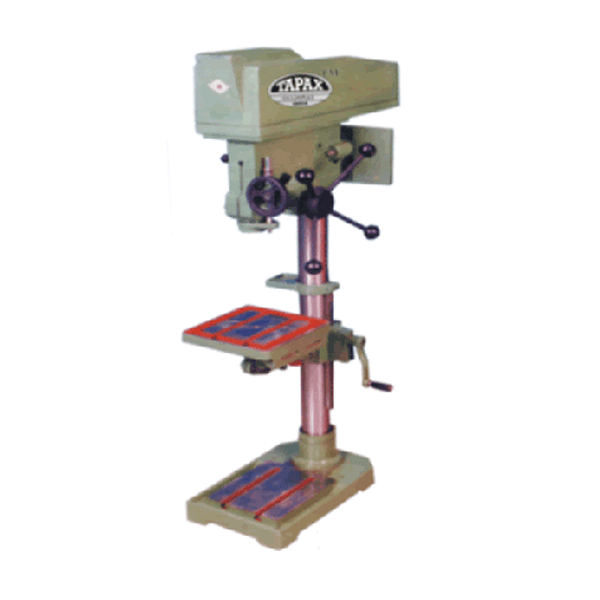

Tapax - 25 mm Silicone Liner Tapping Machine with Accessory


Available on Request
Quantity
Minimum Order Quantity: 1 unit(s) Packing Qty: 1 Piece
OR
Reach Us At +91-9243011081

Tapax - 25 mm Silicone Liner Tapping Machine with Accessory

Price

Available on Request
Delivery * Free delivery above Rs. 1000
* COD payment upto Rs. 5000
* 7 days easy replacement policy
* Bulk orders are shipped through surface and therefore might take more than 10 days for delivery

Check

Please enter pincode.
Services

Dispatch in 14-15 Business Days

Standard SD Replacement Policy

100% Authentic and Genuine Products. Secure and Safe Payments.

NA

NA

Description

The Tapax - 25 mm silicone liner tapping machine with Accessory is designed with accuracy and sufficient surface area for working with the workpiece. It is made up of high-grade materials and advanced technology, making it one of the best tapping machines in the market. The 25 mm silicone liner tapping machine with an extra ordinary export quality linear clutch is equipped with an accessory. The silicone liner tapping machine with accessory is an easy clamping device fitted for locking the workpiece on the column. It is made up of EN8 that helps us to withstand any kind of distortion. The Tapping machine is lanced and mounted on roller bearings for better accuracy.

Product Specification:

Brand: Tapax

Product: Silicone Liner Tapping Machine with Accessory

Model: 25 mm

Diameter: 74 mm

Speed: 1440 rpm

Width: 400 mm

Weight: 150 kg

Drilling Capacity: 12 mm

Height: 1400 mm

Key Features:

Fully Automatic

Automatic Pitch Control

Product Specifications

GENERAL

Brand:
Tapax
Country of Origin:
India
Diameter of Column:
99 mm
Distance Between Chuck to Base:
950 mm
Distance Between Chuck to Work Table:
710 mm
Distance Spindle to Column:
206 mm
Drilling Capacity:
25 mm
Forwards Speeds Range:
105 to 2651
Material:
Silicone Liner
No of Spindle Speed:
8
Overall Height:
1606 mm
Overall Width:
550 mm
Reverse Speeds Range:
105 to 2651
Size of Base Plate:
336x336 mm
Size of Work Table:
550x375 mm
Spindle Travel:
150 mm
Tapping Machine Capacity:
25 mm
Weight:
200 Kg
