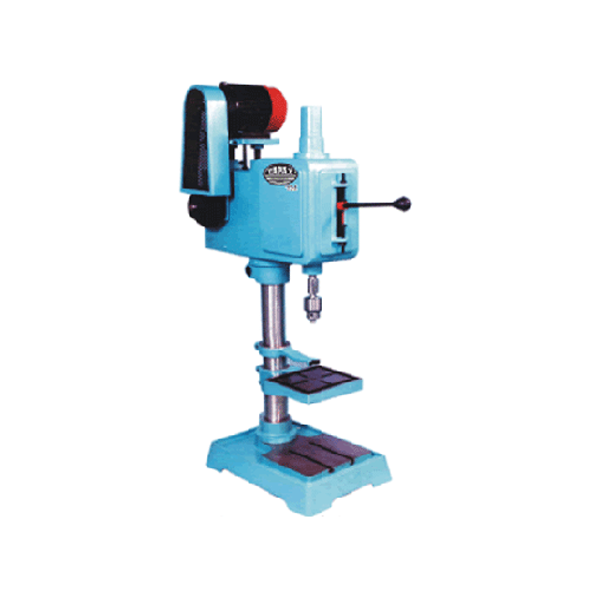

Tapax 12 mm Silicone Tapping Machine has been designed by Tapax, India's leading tapping manufacturing company, to look into and provide an answer to all tapping related issues. This model of Tapax Silicone Liner Tapping Machine is characterized by a 12 mm tapping machine clutch cone. It is made of high-grade materials and has an export quality clutch system.
Product specifications:
Diameter of Column: 74 mm
Distance Between Chuck to Base: 450 mm
Distance Between Chuck to Work Table: 380 mm
Distance Spindle to Column: 140 mm
Drilling Capacity: 8 mm
Forwards Speeds Range: 350/620/1100
Material: Silicone Liner
No of Spindle Speed: 3
Overall Height: 1245 mm
Overall Width: 370 mm
Reverse Speeds Range: 420/745/1315
Size of Base Plate: 480x350 mm
Size of Work Table: 190x220 mm
Spindle Travel: 5 mm
Tapping Machine Capacity: 12 mm
Weight: 120 Kg
Key features:
Robust frame
