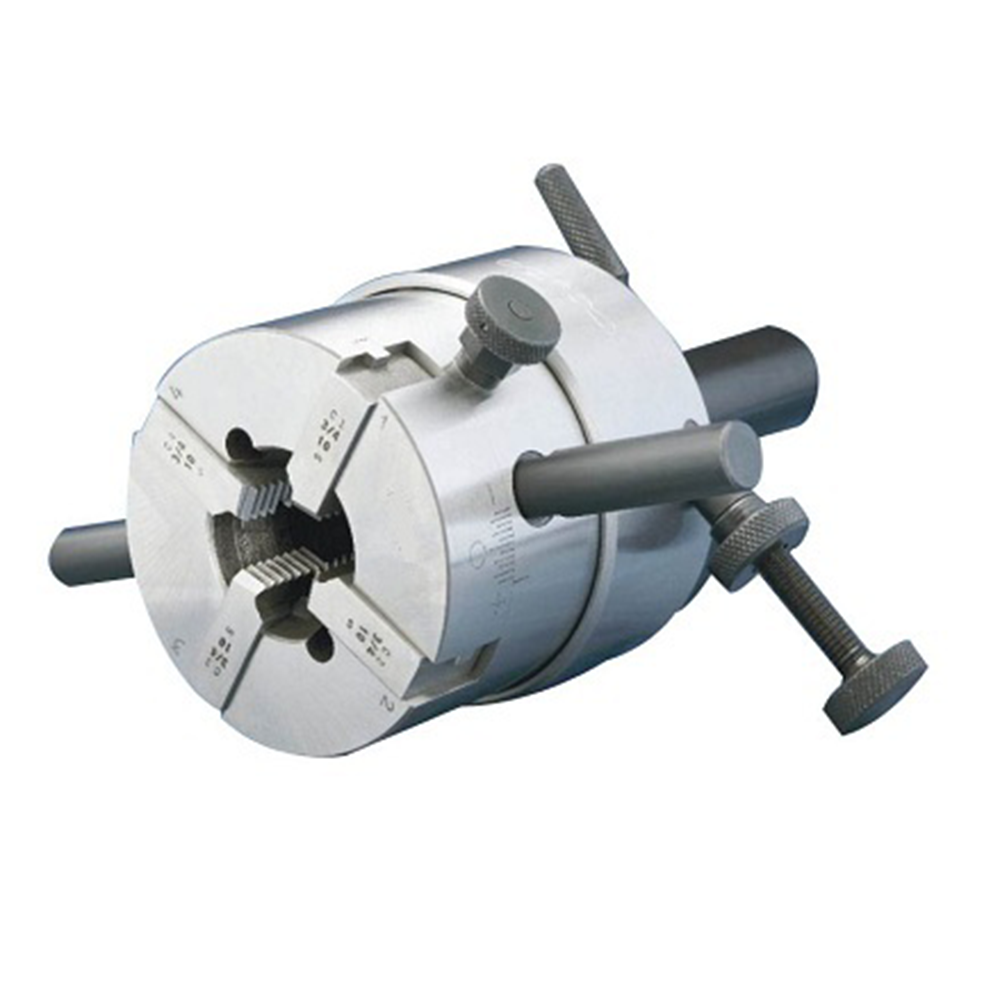

The Taco - 40 mm Self Opening Die Head Model are used for cutting threads and are most suitable for heavy-duty work and mass production. The 40 mm Self Opening Die Head Model can be mounted on centre lathes, turrets, screw machines, or automatic and semi-automatic machines. It is quickly adaptable for a straight, tapper, right hand and left-hand threats or hollow milling. The Self Opening Die Head Model is suitable for close to shoulder threats as the chasers move back from the shoulder immediately the die head opens. It is most suitable for heavy-duty work and mass production.
Product Specification:
Brand: Taco
Capacity: 10 to 24 mm
Capacity in inch: 3/8 to 1 inch
Cutting Of Short Fine Threads Diameter: 30 mm
Cutting Of Short Fine Threads Length: 40 mm
Model: SDH-4
Shank Diameter: 40 mm
Key Features:
Durable
Rust resistance
Compatible
Suitable for Heavy-duty work
