Buy Suguna TT1504 - Three Phase 1.5 HP Motor Online

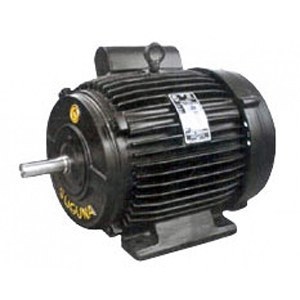

Suguna TT1504 - Three Phase 1.5 HP Motor


Available on Request
Quantity
Minimum Order Quantity: 1 unit(s) Packing Qty: 1 Piece
OR
Reach Us At +91-9243011081

Suguna TT1504 - Three Phase 1.5 HP Motor

Price

Available on Request
Delivery * Free delivery above Rs. 1000
* COD payment upto Rs. 5000
* 7 days easy replacement policy
* Bulk orders are shipped through surface and therefore might take more than 10 days for delivery

Check

Please enter pincode.
Services

Dispatch in 2-3 Business Days

Standard SD Replacement Policy

100% Authentic and Genuine Products. Secure and Safe Payments.

NA

NA

Description

Three phase  electric motor of robust, heavy construction that are durable and working at various voltage conditions. Special motor for industrial applications and as prime mover for pumps, compressor and wet grinders etc.

FEATURES:

  • Casting for body frame, end shields, bearing shields etc., are made out of quality graded grey iron casting which assures a long years of utility
  • Shaft – EN 8 steel // rotors – pressure die cast and dynamically balanced / stator core pack – built from low loss electrical grade steel laminations. the stator winding consists of modified polyester/polyesterimide base insulated copper wire to give high conductivity and impregnated with synthetic resin to attain high die electric properties / Windings are tested on surge comparison tester
  • Die cast aluminium body for frames 56 to 100
  • All motors are painted with rust proof epoxy paint
  • Prompt after sales service.
Product Specifications

GENERAL

Ambient Temperature:
40 Degree Centigrade
Brand:
Suguna
Casing:
Copper Winding
Country of Origin:
India
Frequency:
50 Hz ± 5%
Insulation Class:
A Class
Model:
TT1504
Phase:
3 Phase
Power:
1.5 HP
Protection class:
IP55
Series:
TE
Speed:
1440 rpm
Standard:
IS 325
Sub Type:
TEFC
Type:
General Purpose Motor
Voltage:
415V ± 10%
