Description

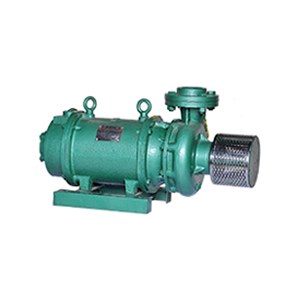

Suguna SSM 24 - Three Phase 5HP Horizontal Open Well SubmersiblePump consists of a motor and pumps that are cased with a high grade cast iron material. Along with that Horizontal, OpenWell Submersible Pumps includes SS Shaft and cast iron impellers. There are two water-lubricated carbon bearings used for longer life and smooth operation. Monoblock pump 5 hp can be installed in a hanging position inside deep open wells. 5 hp open well submersible pump is suitable for high head and high discharge having huge voltage fluctuation applications. It has a durable high water-cooled and rewindable motor. Typical applications include agriculture, lift irrigation, multi stored buildings, hospitals, domestic water supply, etc. Some of its salient features include bi-axially oriented synthetic film insulated winding wires, low weight loss lamination, etc.

Product Specifications

GENERAL

Area of Application:
Can also be installed inside a sump or in hanging position inside deep openwells, High head & high discharge Applications, Agriculture lift irrigation, multi stored building, Hospitals etc
Brand:
Suguna
Country of Origin:
India
Head vs Discharge at 5 HP:
6 Meters: 1430 LPM, 10 Meters: 1230 LPM, 14 Meters: 1080 LPM, 16 Meters: 1000 LPM, 20 Meters: 850 LPM, 22 Meters: 830 LPM, 26 Meters: 570 LPM, 30 Meters: 270 LPM
Model:
SSM 24
Pipe Size:
65 mm
Power:
5 HP
