Buy Suguna SMD 3640 - 2 HP High Head Stage Pump Online

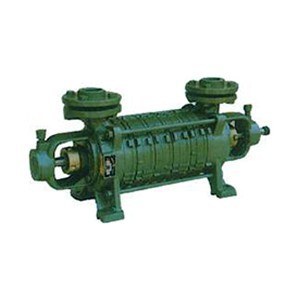

Suguna SMD 3640 - 2 HP High Head Stage Pump


Available on Request
Quantity
Minimum Order Quantity: 1 unit(s) Packing Qty: 1 Piece
OR
Reach Us At +91-9243011081

Suguna SMD 3640 - 2 HP High Head Stage Pump

Price

Available on Request
Delivery * Free delivery above Rs. 1000
* COD payment upto Rs. 5000
* 7 days easy replacement policy
* Bulk orders are shipped through surface and therefore might take more than 10 days for delivery

Check

Please enter pincode.
Services

Dispatch in 2-3 Business Days

Standard SD Replacement Policy

100% Authentic and Genuine Products. Secure and Safe Payments.

NA

NA

Description

Features:

  • Multi stage pumps with single stainless steel shaft
  • High grade cast iron/gun metal casing
  • Brass impeller for durability
  • Self priming pumps
  • Available in gun metal/brass for special applications
Product Specifications

GENERAL

Area of Application:
Domestic & agricultural use, Water circulation & boiler feed, Chemical pumping & circulation for industrial coolers, Plantations
Brand:
Suguna
Country of Origin:
India
Discharge Pressure:
18 Meters, 140 LPM: 1.8 kgf/cm², 24 Meters, 129 LPM: 2.4 kgf/cm², 30 Meters, 106 LPM: 3.0 kgf/cm², 42 Meters: 98.5 LPM 4.2 kgf/cm², 45 Meters: 95 LPM 4.5 kgf/cm², 54 Meters: 79 LPM 5.4 kgf/cm², 60 Meters: 64.5 LPM 6.0 kgf/cm²
Head Range:
30 - 60 mts
Head vs Discharge at 1420 RPM 2.00 HP:
18 Meters: 140 LPM, 24 Meters: 129 LPM, 30 Meters: 121 LPM, 36 Meters: 106 LPM, 42 Meters: 98.5 LPM, 45 Meters: 95 LPM, 54 Meters: 79 LPM, 60 Meters: 64.5 LPM
Model:
SMD 3640
Pipe Size:
38 x 38 mm
Power:
2.00 HP
Speed:
1420 rpm
Stage:
4
