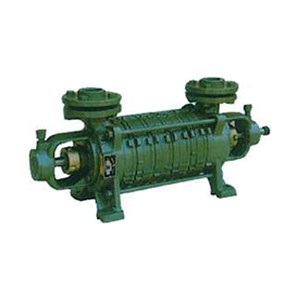

Suguna SM 3610 - 1.50 HP High Head Stage Pump


Available on Request
Quantity
Minimum Order Quantity: 1 unit(s) Packing Qty: 1 Piece
OR
Reach Us At +91-9243011081

Suguna SM 3610 - 1.50 HP High Head Stage Pump

Price

Available on Request
Delivery * Free delivery above Rs. 1000
* COD payment upto Rs. 5000
* 7 days easy replacement policy
* Bulk orders are shipped through surface and therefore might take more than 10 days for delivery

Check

Please enter pincode.
Services

Dispatch in 2-3 Business Days

Standard SD Replacement Policy

100% Authentic and Genuine Products. Secure and Safe Payments.

NA

NA

Description

Features:

  • Multi stage pumps with single stainless steel shaft
  • High grade cast iron/gun metal casing
  • Brass impeller for durability
  • Self priming pumps
  • Available in gun metal/brass for special applications
Product Specifications

GENERAL

Area of Application:
Domestic & agricultural use, Water circulation & boiler feed, Chemical pumping & circulation for industrial coolers, Plantations
Brand:
Suguna
Country of Origin:
India
Discharge Pressure:
9 Meters, 120 LPM: 9.0 kgf/cm², 12 Meters, 110 LPM: 1.2 kgf/cm², 15 Meters, 98.5 LPM: 1.5 kgf/cm², 21 Meters: 80 LPM 2.1 kgf/cm², 24 Meters: 68 LPM 2.4 kgf/cm², 27 Meters: 59 LPM 2.7 kgf/cm²²
Head Range:
15 - 27 mts
Head vs Discharge at 1420 RPM 1.50 HP:
9 Meters: 120 LPM, 12 Meters: 110 LPM, 15 Meters: 98.5 LPM, 18 Meters: 88 LPM, 21 Meters: 80 LPM, 24 Meters: 68 LPM, 27 Meters: 59 LPM
Model:
SM 3610
Pipe Size:
38 x 38 mm
Power:
1.50 HP
Speed:
1420 rpm
Stage:
1
