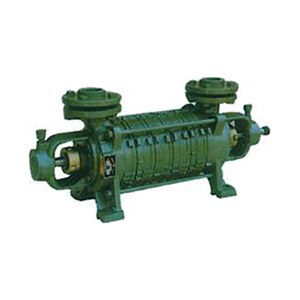

Suguna SM 1230 - 1.50 HP High Head Stage Pump


Available on Request
Quantity
Minimum Order Quantity: 1 unit(s) Packing Qty: 1 Piece
OR
Reach Us At +91-9243011081

Suguna SM 1230 - 1.50 HP High Head Stage Pump

Price

Available on Request
Delivery * Free delivery above Rs. 1000
* COD payment upto Rs. 5000
* 7 days easy replacement policy
* Bulk orders are shipped through surface and therefore might take more than 10 days for delivery

Check

Please enter pincode.
Services

Dispatch in 2-3 Business Days

Standard SD Replacement Policy

100% Authentic and Genuine Products. Secure and Safe Payments.

NA

NA

Description

Features:

  • Multi stage pumps with single stainless steel shaft
  • High grade cast iron/gun metal casing
  • Brass impeller for durability
  • Self priming pumps
  • Available in gun metal/brass for special applications
Product Specifications

GENERAL

Area of Application:
Domestic & agricultural use, Water circulation & boiler feed, Chemical pumping & circulation for industrial coolers, Plantations
Brand:
Suguna
Country of Origin:
India
Discharge Pressure:
22.5 Meters, 38 LPM: 2.25 kgf/cm², 27 Meters, 35 LPM: 2.7 kgf/cm², 30 Meters, 32.5 LPM: 3.0 kgf/cm², 33 Meters: 31 LPM 3.3 kgf/cm², 36 Meters: 29.5 LPM 3.6 kgf/cm², 39 Meters: 28 LPM 3.9 kgf/cm², 42 Meters: 26.5 LPM 4.2 kgf/cm², 45 Meters: 24.5 LPM 4.5 kg
Head Range:
22.5 - 45 mts
Head vs Discharge at 1420 RPM 1.50 HP:
22.5 Meters: 38 LPM, 27 Meters: 35 LPM, 30 Meters: 32.5 LPM, 33 Meters: 31 LPM, 36 Meters: 29.5 LPM, 39 Meters: 28 LPM, 42 Meters: 26.5 LPM, 45 Meters: 24.5 LPM, 48 Meters: 23 LPM
Model:
SM 1230
Pipe Size:
25 x 25 mm
Power:
1.50 HP
Speed:
1420 rpm
Stage:
3
