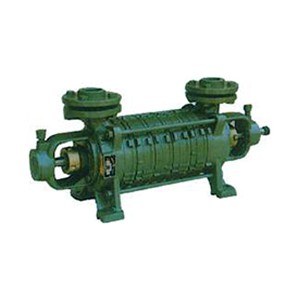

Suguna SL 1220 - 0.75 HP High Head Stage Pump


Available on Request
Quantity
Minimum Order Quantity: 1 unit(s) Packing Qty: 1 Piece
OR
Reach Us At +91-9243011081

Suguna SL 1220 - 0.75 HP High Head Stage Pump

Price

Available on Request
Delivery * Free delivery above Rs. 1000
* COD payment upto Rs. 5000
* 7 days easy replacement policy
* Bulk orders are shipped through surface and therefore might take more than 10 days for delivery

Check

Please enter pincode.
Services

Dispatch in 2-3 Business Days

Standard SD Replacement Policy

100% Authentic and Genuine Products. Secure and Safe Payments.

NA

NA

Description

Features:

  • Multi stage pumps with single stainless steel shaft
  • High grade cast iron/gun metal casing
  • Brass impeller for durability
  • Self priming pumps
  • Available in gun metal/brass for special applications
Product Specifications

GENERAL

Area of Application:
Domestic & agricultural use, Water circulation & boiler feed, Chemical pumping & circulation for industrial coolers, Plantations
Brand:
Suguna
Country of Origin:
India
Discharge Pressure:
15 Meters, 40 LPM: 1.5 kgf/cm², 18 Meters, 37 LPM: 1.8 kgf/cm², 21 Meters, 34 LPM: 2.1 kgf/cm², 24 Meters: 31 LPM 2.4 kgf/cm², 27 Meters: 28 LPM 2.7 kgf/cm², 30 Meters: 24 LPM 3.0 kgf/cm², 33 Meters: 21 LPM 3.3 kgf/cm², 17 Meters: 37.5 LPM 3.75 kgf/cm²
Head Range:
18 - 37.5 mts
Head vs Discharge at 1420 RPM 0.75 HP:
15 Meters: 40 LPM, 18 Meters: 37 LPM, 21 Meters: 34 LPM, 24 Meters: 31 LPM, 27 Meters: 28 LPM, 30 Meters: 24 LPM, 33 Meters: 21 LPM, 37.5 Meters: 17 LPM
Model:
SL 1220
Pipe Size:
25 x 25 mm
Power:
0.75 HP
Speed:
1420 rpm
Stage:
2
