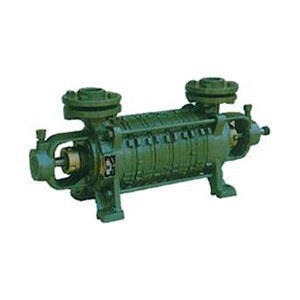

Suguna SBD 4120 - 5 HP High Head Stage Pump


Available on Request
Quantity
Minimum Order Quantity: 1 unit(s) Packing Qty: 1 Piece
OR
Reach Us At +91-9243011081

Suguna SBD 4120 - 5 HP High Head Stage Pump

Price

Available on Request
Delivery * Free delivery above Rs. 1000
* COD payment upto Rs. 5000
* 7 days easy replacement policy
* Bulk orders are shipped through surface and therefore might take more than 10 days for delivery

Check

Please enter pincode.
Services

Dispatch in 2-3 Business Days

Standard SD Replacement Policy

100% Authentic and Genuine Products. Secure and Safe Payments.

NA

NA

Description

Features:

  • Multi stage pumps with single stainless steel shaft
  • High grade cast iron/gun metal casing
  • Brass impeller for durability
  • Self priming pumps
  • Available in gun metal/brass for special applications
Product Specifications

GENERAL

Area of Application:
Domestic & agricultural use, Water circulation & boiler feed, Chemical pumping & circulation for industrial coolers, Plantations
Brand:
Suguna
Country of Origin:
India
Discharge Pressure:
15 Meters, 197 LPM: 1.5 kgf/cm², 21 Meters, 185 LPM: 2.1 kgf/cm², 27 Meters, 171 LPM: 2.7 kgf/cm², 33 Meters: 108 LPM 3.3 kgf/cm², 45 Meters: 129 LPM 4.5 kgf/cm², 60 Meters: 92.5 LPM 6.0 kgf/cm², 66 Meters: 76 LPM 6.6 kgf/cm²
Head Range:
30 - 67.5 mts
Head vs Discharge at 1420 RPM 5.00 HP:
15 Meters: 197 LPM, 21 Meters: 185 LPM, 27 Meters: 171 LPM, 33 Meters: 155.5 LPM, 45 Meters: 129 LPM, 60 Meters: 92.5 LPM, 66 Meters: 76 LPM
Model:
SBD 4120
Pipe Size:
38 x 38 mm
Power:
5.00 HP
Speed:
1420 rpm
Stage:
2
