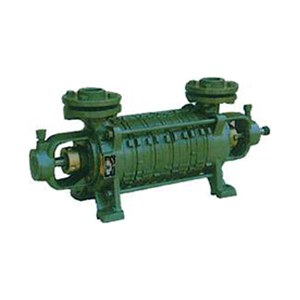

Suguna SBD 3160 - 10 HP High Head Stage Pump


Available on Request
Quantity
Minimum Order Quantity: 1 unit(s) Packing Qty: 1 Piece
OR
Reach Us At +91-9243011081

Suguna SBD 3160 - 10 HP High Head Stage Pump

Price

Available on Request
Delivery * Free delivery above Rs. 1000
* COD payment upto Rs. 5000
* 7 days easy replacement policy
* Bulk orders are shipped through surface and therefore might take more than 10 days for delivery

Check

Please enter pincode.
Services

Dispatch in 2-3 Business Days

Standard SD Replacement Policy

100% Authentic and Genuine Products. Secure and Safe Payments.

NA

NA

Description

Features:

  • Multi stage pumps with single stainless steel shaft
  • High grade cast iron/gun metal casing
  • Brass impeller for durability
  • Self priming pumps
  • Available in gun metal/brass for special applications
Product Specifications

GENERAL

Area of Application:
Domestic & agricultural use, Water circulation & boiler feed, Chemical pumping & circulation for industrial coolers, Plantations
Brand:
Suguna
Country of Origin:
India
Discharge Pressure:
49 Meters, 93 LPM: 4.9 kgf/cm², 74 Meters, 83 LPM: 7.4 kgf/cm², 98.5 Meters, 72.5 LPM: 9.85 kgf/cm², 123 Meters: 62 LPM 12.3 kgf/cm², 148 Meters: 49 LPM 14.8 kgf/cm², 178.5 Meters: 38 LPM 17.85 kgf/cm², 197 Meters: 25 LPM 19.7 kgf/cm², 222 Meters: 16 LPM
Head Range:
141 - 222 mts
Head vs Discharge at 1420 RPM 10.00 HP:
49 Meters: 93 LPM, 74 Meters: 83 LPM, 98.5 Meters: 72.5 LPM, 123 Meters: 62 LPM, 148 Meters: 49 LPM, 178.5 Meters: 38 LPM, 197 Meters: 25 LPM, 222 Meters: 16 LPM
Model:
SBD 3160
Pipe Size:
32 x 32 mm
Power:
10.00 HP
Speed:
1420 rpm
Stage:
6
