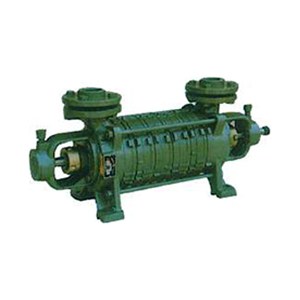

Suguna SBD 3150 - 3 HP High Head Stage Pump


Available on Request
Quantity
Minimum Order Quantity: 1 unit(s) Packing Qty: 1 Piece
OR
Reach Us At +91-9243011081

Suguna SBD 3150 - 3 HP High Head Stage Pump

Price

Available on Request
Delivery * Free delivery above Rs. 1000
* COD payment upto Rs. 5000
* 7 days easy replacement policy
* Bulk orders are shipped through surface and therefore might take more than 10 days for delivery

Check

Please enter pincode.
Services

Dispatch in 2-3 Business Days

Standard SD Replacement Policy

100% Authentic and Genuine Products. Secure and Safe Payments.

NA

NA

Description

Features:

  • Multi stage pumps with single stainless steel shaft
  • High grade cast iron/gun metal casing
  • Brass impeller for durability
  • Self priming pumps
  • Available in gun metal/brass for special applications
Product Specifications

GENERAL

Area of Application:
Domestic & agricultural use, Water circulation & boiler feed, Chemical pumping & circulation for industrial coolers, Plantations
Brand:
Suguna
Country of Origin:
India
Discharge Pressure:
49 Meters, 88 LPM: 4.9 kgf/cm², 74 Meters, 74 LPM: 7.4 kgf/cm², 98.5 Meters, 62 LPM: 9.85 kgf/cm², 123 Meters: 47 LPM 12.3 kgf/cm², 148 Meters: 35 LPM 14.8 kgf/cm², 172.5 Meters: 22 LPM 17.25 kgf/cm²
Head Range:
69 - 172.5 mts
Head vs Discharge at 1420 RPM 3.00 HP:
49 Meters: 88 LPM, 74 Meters: 74 LPM, 98.5 Meters: 62 LPM, 123 Meters: 47 LPM, 148 Meters: 35 LPM, 172.5 Meters: 22 LPM
Model:
SBD 3150
Pipe Size:
32 x 32 mm
Power:
3.00 HP
Speed:
1420 rpm
Stage:
5
