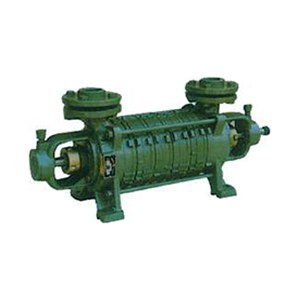

Suguna SBD 3140 - 2 HP High Head Stage Pump


Available on Request
Quantity
Minimum Order Quantity: 1 unit(s) Packing Qty: 1 Piece
OR
Reach Us At +91-9243011081

Suguna SBD 3140 - 2 HP High Head Stage Pump

Price

Available on Request
Delivery * Free delivery above Rs. 1000
* COD payment upto Rs. 5000
* 7 days easy replacement policy
* Bulk orders are shipped through surface and therefore might take more than 10 days for delivery

Check

Please enter pincode.
Services

Dispatch in 2-3 Business Days

Standard SD Replacement Policy

100% Authentic and Genuine Products. Secure and Safe Payments.

NA

NA

Description

Features:

  • Multi stage pumps with single stainless steel shaft
  • High grade cast iron/gun metal casing
  • Brass impeller for durability
  • Self priming pumps
  • Available in gun metal/brass for special applications
Product Specifications

GENERAL

Area of Application:
Domestic & agricultural use, Water circulation & boiler feed, Chemical pumping & circulation for industrial coolers, Plantations
Brand:
Suguna
Country of Origin:
India
Discharge Pressure:
45 Meters, 77 LPM: 4.5 kgf/cm², 60 Meters, 70 LPM: 6.0 kgf/cm², 75 Meters, 61.5 LPM: 7.5 kgf/cm², 90 Meters: 53 LPM 9.0 kgf/cm², 105 Meters: 46 LPM 10.5 kgf/cm², 120 Meters: 36.5 LPM 12.0 kgf/cm², 141 Meters: 26 LPM 14.1 kgf/cm²
Head Range:
45 - 141 mts
Head vs Discharge at 1420 RPM 2.00 HP:
45 Meters: 77 LPM, 60 Meters: 70 LPM, 75 Meters: 61.5 LPM, 90 Meters: 53 LPM, 105 Meters: 46 LPM, 120 Meters: 36.5 LPM, 141 Meters: 26 LPM
Model:
SBD 3140
Pipe Size:
32 x 32 mm
Power:
2.00 HP
Speed:
1420 rpm
Stage:
4
