Buy Suguna SB 3110 - 1 HP High Head Stage Pump Online

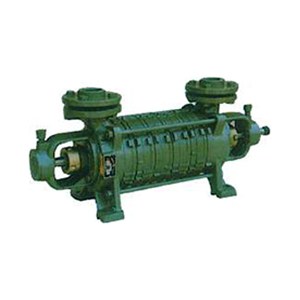

Suguna SB 3110 - 1 HP High Head Stage Pump


Available on Request
Quantity
Minimum Order Quantity: 1 unit(s) Packing Qty: 1 Piece
OR
Reach Us At +91-9243011081

Suguna SB 3110 - 1 HP High Head Stage Pump

Price

Available on Request
Delivery * Free delivery above Rs. 1000
* COD payment upto Rs. 5000
* 7 days easy replacement policy
* Bulk orders are shipped through surface and therefore might take more than 10 days for delivery

Check

Please enter pincode.
Services

Dispatch in 2-3 Business Days

Standard SD Replacement Policy

100% Authentic and Genuine Products. Secure and Safe Payments.

NA

NA

Description

Features:

  • Multi stage pumps with single stainless steel shaft
  • High grade cast iron/gun metal casing
  • Brass impeller for durability
  • Self priming pumps
  • Available in gun metal/brass for special applications
Product Specifications

GENERAL

Area of Application:
Domestic & agricultural use, Water circulation & boiler feed, Chemical pumping & circulation for industrial coolers, Plantations
Brand:
Suguna
Country of Origin:
India
Discharge Pressure:
12 Meters, 76 LPM: 1.2 kgf/cm², 18 Meters, 63 LPM: 1.8 kgf/cm², 24 Meters, 53 LPM: 2.4 kgf/cm², 30 Meters: 41 LPM 3.0 kgf/cm², 36 Meters: 28 LPM 3.6 kgf/cm², 42 Meters: 13 LPM 4.2 kgf/cm²
Head Range:
30 - 42 mts
Head vs Discharge at 1420 RPM 1.00 HP:
12 Meters: 76 LPM, 18 Meters: 63 LPM, 24 Meters: 122 LPM, 24 Meters: 53 LPM, 30 Meters: 41 LPM, 36 Meters: 28 LPM, 42 Meters: 13 LPM
Model:
SB 3110
Pipe Size:
32 x 32 mm
Power:
1.00 HP
Speed:
1420 rpm
Stage:
1
