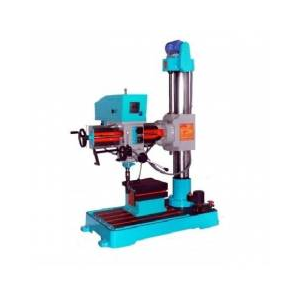

SMS radial drilling machine without accessories possesses a 40-mm drilling capacity and has a column diameter of 165 mm with a motor of 1.5 HP. The device has a base area of dimensions 1300 x 753 mm. Since this is a radial drilling machine, it is best suited for heavy metalwork.
Product Specifications:
The wooden box of the machine has the dimensions 1400 x 850 x 2100 mm.
The machine has a 787 mm Ram diameter and a spindle speed of 8.
The drilling machine has a height of 1930 mm and occupies a floor space of 762 x 1295 mm.
It weighs 950 kilograms.
Key Features:
A 214 mm spindle travel and eight spindle speed makes the drilling machine efficient.
Powered by a 1.5 HP drill head motor and 1 HP elevating motor, the drill provides quick and effortless performance.
It occupies a tiny place on the floor without becoming an obstruction to the free movement of others.
